SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

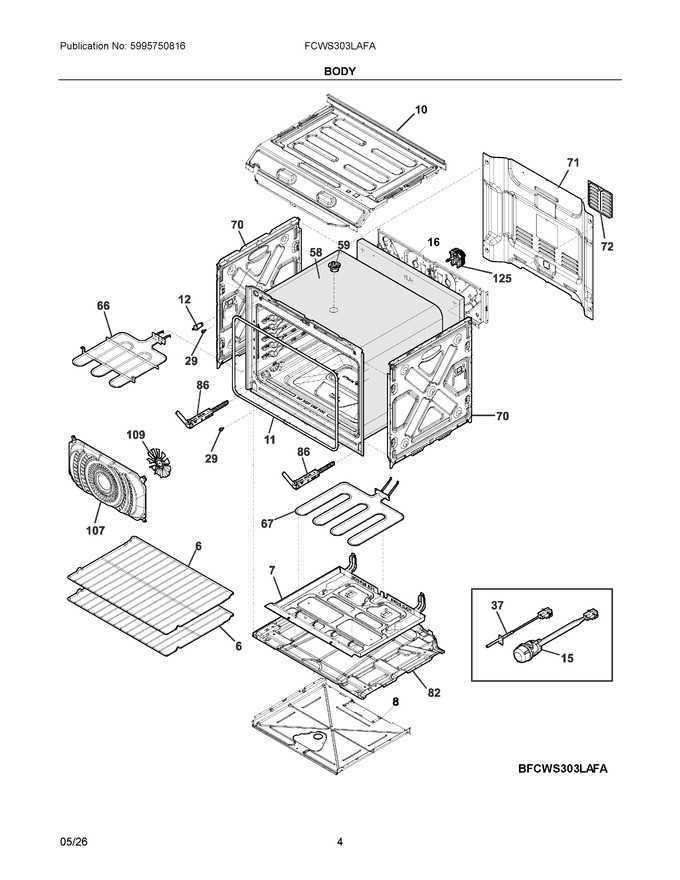

03 - Body


04 - Door


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5304531722		Rack, Oven, Flat			Immediately	$ 51.05
7	5304528326		Tray, Hidden Bake				$ 52.33
8	5304526320		Shield, Bottom Duct		Appelez-nous	-
10	140144456039		Shield, Top Cover		Appelez-nous	-
11	5304526242		Seal, Oven Door, Charcoal			Immediately	$ 144.09
12	318394805		Switch, Light, Door				$ 8.06
15	140072023223		Lamp, Halogen, 40w				$ 13.71
16	140152666099		Mounting Panel, Base		Appelez-nous	-
29	316517600		Bumper, Front, Main				$ 12.05
37	5304526310		Probe, Oven Sensor			Immediately	$ 43.17
58	140293845016		Insulation, Oven, Wrapper		Appelez-nous	-
59	140169214032		Tube, Vent Catalyst		Appelez-nous	-
66	140156193199		Element, Broil   (Replaces: 140195757137)		Appelez-nous	-
67	140156196192		Element, Hidden Bake, 2500w		Appelez-nous	-
70	140144451022		Panel, Side, Exterior		Appelez-nous	-
71	5304526329		Shield, Rear Wire				$ 78.87
72	5304526588		Cover, Convection Mtr				$ 17.01
82	5304536537		Plate-ext Bottom				$ 33.81
86	5304526279		Hinge, Oven Door, Orange, 2 Spring			Immediately	$ 70.22
107	5304526365		Cover, Fan, Midnight Black, Convection		Appelez-nous	-
109	5304525455		Blade, Fan, Convection				$ 14.41
125	5304528165		Motor, Convection Fan			Immediately	$ 75.78
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	5304534695		Screw, Self Drill, M3.5 X 9.5				$ 3.67
NI	5304532105		Harness, Wiring, Upper Oven, Ds				$ 19.51
NI	5304532099		Harness, Wiring, Wall Oven, Macs				$ 22.45
NI	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	387856311		Screw, 4.2 X 10				$ 3.03
NI	5304530450		Anti Tip, Kit				$ 37.76
NI	5304535368		Harness, Conduit Assy., Power Connect   (Replaces: 5304525431)				$ 154.45
NIA	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NIA	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NIA	5304526532		Screw, M4.2 X 9.5, Black				$ 3.03

    View Diagram in Separate Window       Print Part List
