SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner

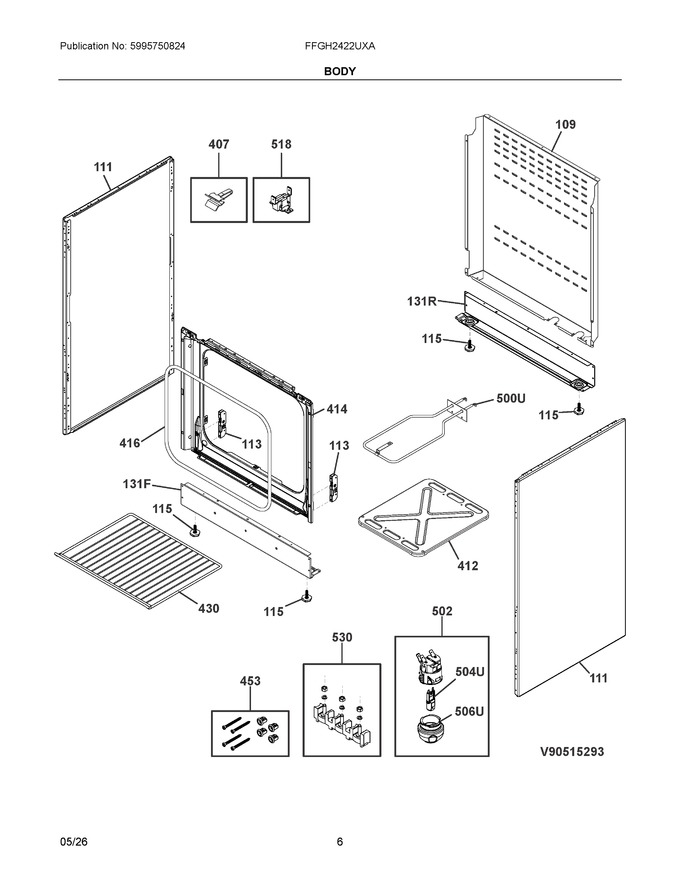

04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Schematic


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
109	A14125903		Panel, Oven Back		Appelez-nous	-
111	A02114903		Panel, Side, Black				$ 164.01
113	A05102101		Receptacle, Hinge, Door		Appelez-nous	-
115	A02244101		Foot, Cabinet, Adjustable				$ 77.41
407	354313201		Clip, Bulb, Oven Thermostat		Appelez-nous	-
412	353201123		Cover, Oven Bottom		Appelez-nous	-
414	342397603		Frame, Oven Front				$ 138.02
416	357732201		Seal, Oven Door				$ 65.23
430	8583546595023		Rack, Oven, 422.8x347mm   (Replaces: 354659502)				$ 48.20
453	5029303600		Kit, Bushing, (4 Pcs), W/screws			Immediately	$ 19.11
502	A07202302		Lamp Assembly, Oven, W/bulb				$ 36.86
518	330208111		Thermostat, Protection, Overheating				$ 108.14
530	405538919		Kit, Terminal Block				$ 37.93
131F	A02827003		Toe Plate, Front, Black				$ 87.77
131R	A02827004		Panel, Filler, Lower Rear				$ 79.78
500U	A10620302		Element, Heating, Upper, 1000w, 120v		Appelez-nous	-
504U	808564103		Bulb, Oven Lamp, G9, 25w, 120v		Appelez-nous	-
506U	A21715401		Lens, Oven Lamp				$ 40.36
NI	A03781401		Power Cord, Electric Servic				$ 94.04
NI	342176001		Support, Corner		Appelez-nous	-
NI	A00131002		Gasket, 180 Mm		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
