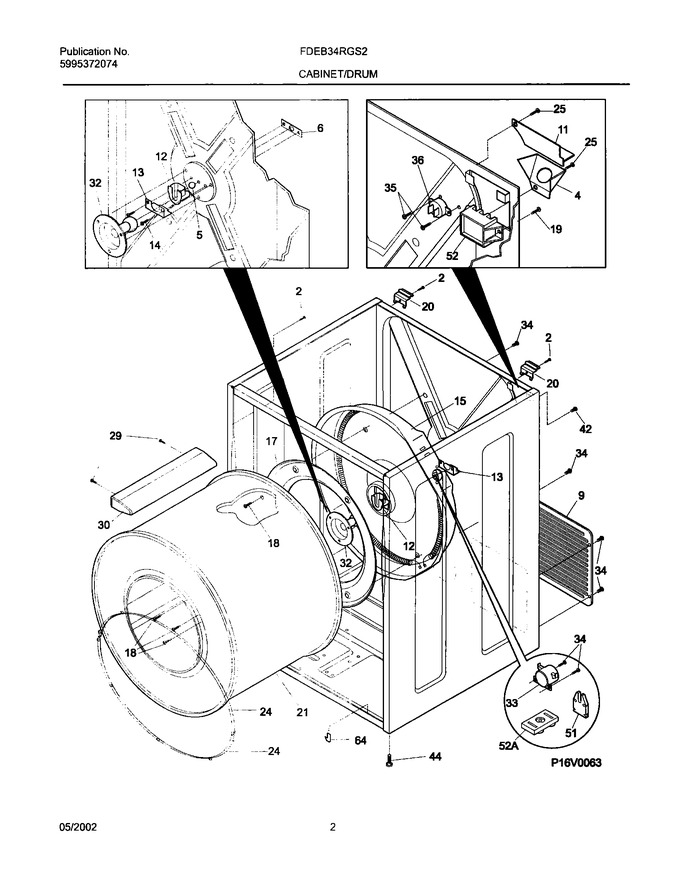

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 131168200 | Screw,8-18 X 0.31 ,12 |
|
Immediately | $ 14.18 | ||||
| 4 | 131785200 | Bracket-cord |
|
$ 30.08 | |||||
| 5 | 5303281019 | Ball |
|
$ 16.30 | |||||
| 6 | 5303281020 | Clip-ball |
|
$ 17.01 | |||||
| 9 | 131793201 | Panel-access |
|
- | |||||
| 11 | 5303211428 | Cover-term Block |
|
$ 44.15 | |||||
| 12 | 131825900 | Bearing-drum Support |
|
Immediately | $ 10.97 | ||||
| 13 | 131724301 | Bracket-bearing (Replaces: 131724300) |
|
Immediately | $ 25.66 | ||||
| 14 | 131205400 | Screw-bracket, 10-16b X 1.375, Cr/sq Drive |
|
$ 12.76 | |||||
| 17 | 3204254 | Baffle-heater |
|
$ 129.00 | |||||
| 18 | 131168200 | Screw-shaft & Baffle, Comb Ph Ab Spcl, 10-16 X .375 (Replaces: 131477000) |
|
Immediately | $ 14.18 | ||||
| 19 | 131205300 | Screw, 10-16 X .75 |
|
Immediately | $ 12.10 | ||||
| 20 | 131469100 | Bracket-hinge |
|
$ 44.84 | |||||
| 21 | 134122532 | Asmy-drum Galvanized,21 |
|
$ 484.07 | |||||
| 24 | 137513300 | Glide-drum (Replaces: 131963900) |
|
Immediately | $ 36.68 | ||||
| 25 | 5303015671 | Screw,8-18 X .375 |
|
- | |||||
| 29 | 131382300 | Screw-vane, Quadrex Head, 10-14 X 1.00, Special |
|
Immediately | $ 13.46 | ||||
| 30 | 137552900 | Vane (Replaces: 5303201200) |
|
$ 54.95 | |||||
| 32 | 131777700 | Asmy-shaft (ballhitch) |
|
Immediately | $ 71.87 | ||||
| 34 | 131243700 | Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive |
|
$ 3.36 | |||||
| 35 | 131892100 | Scr 6-20x.230 Pph B Pt |
|
- | |||||
| 42 | 134156200 | Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive (Replaces: 131209600) |
|
Immediately | $ 14.89 | ||||
| 44 | 131527400 | Foot-cabinet |
|
$ 0.95 | |||||
| 51 | 131472100 | Insulator,heater Housing |
|
$ 60.01 | |||||
| 52 | 134101400 | Block-terminal |
|
Immediately | $ 55.99 | ||||
| 64 | 131704600 | Clip |
|
$ 17.69 | |||||
| 52A | 3202786 | Block-terminal,heater Hsg |
|
$ 64.49 | |||||
| F15 | 131553900 | Heater-hsg Assy |
|
Immediately | $ 96.91 | ||||
| F33 | 3204267 | Thermostat-safety |
|
Immediately | $ 53.49 | ||||
| F36 | 134120900 | Thermal Limiter |
|
Immediately | $ 13.21 | ||||
| NI | 5303281153 | Rear Bearing Kit,includes No.5,6 ,12,13,14,18,32 |
|
Immediately | $ 46.64 | ||||
| NI | 5303307893 | Lubricant, High Temp |
|
$ 34.02 |
