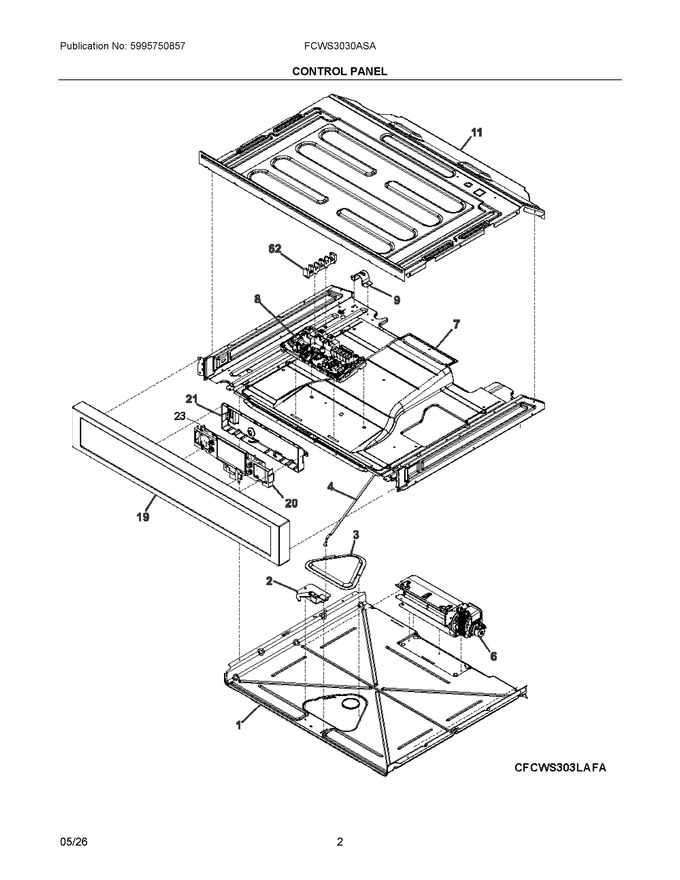

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526320		Shield, Bottom Duct		Appelez-nous	-
3	5304526366		Cover, Vent		Appelez-nous	-
6	140175788037		Blower, Assembly			Immediately	$ 100.37
7	5304526538		Carrier Plate, Assembly, W/duct		Appelez-nous	-
8	140171068087		Pc Board, Ovc				$ 127.45
9	5304530364		Bracket, Conduit Mtg.		Appelez-nous	-
11	140144456039		Shield, Top Cover		Appelez-nous	-
19	140171002102		Control Panel, Assembly, Stainless		Appelez-nous	-
20	140225818123		Controller, Electronic, Ui455s		Appelez-nous	-
21	5304533876		Chassis, Control			Immediately	$ 17.91
23	140199403027		Control Board, Hmi Hector				$ 49.37
62	5304535277		Terminal Block			Immediately	$ 3.96
NI	5304532099		Harness, Wiring, Wall Oven, Macs				$ 22.45
NI	140220067130		Wiring Harness, Mdl, Temp Probe		Appelez-nous	-
NI	140200603110		Wiring Harness, Hmi Hector, Jumper		Appelez-nous	-
NI	140178159061		Wiring Harness, Main		Appelez-nous	-
NI	5304532105		Harness, Wiring, Upper Oven, Ds				$ 19.51
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NI	5304535368		Harness, Conduit Assy., Power Connect   (Replaces: 5304525431)				$ 154.45
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIC	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
