SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

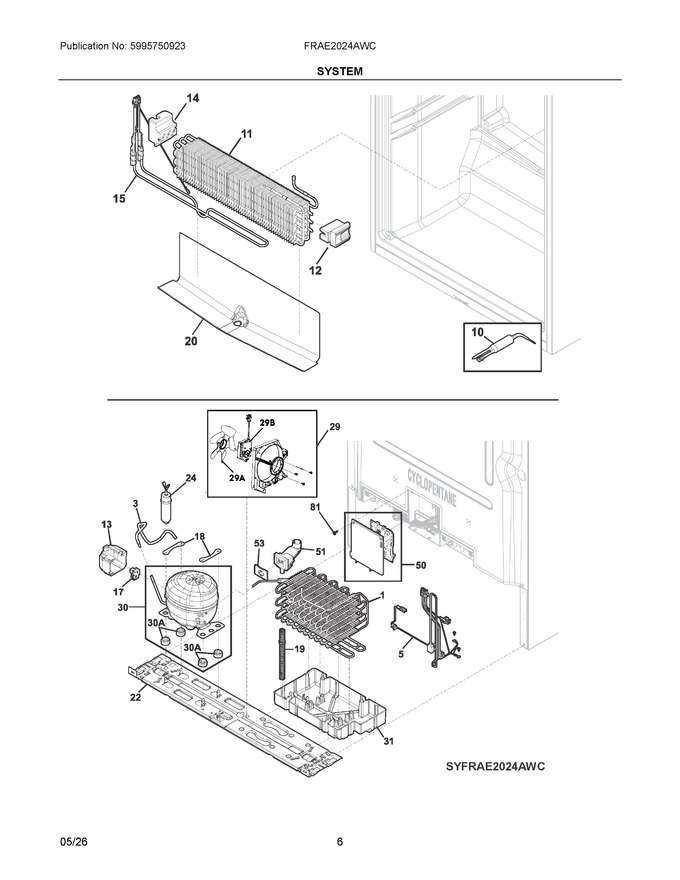

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304533258		Condenser, Dynamic				$ 138.22
3	5304519693		Tube, Suction Jumper				$ 31.10
5	5304531478		Harness, Wiring, Machine Comprt				$ 53.03
10	A19676501		Dryer Assembly, Filter   (Replaces: 5304522277)			Immediately	$ 99.73
11	5304523830		Evaporator, Coil			Immediately	$ 143.67
12	5304523831		Support, Evaporator, Rh				$ 3.62
13	5304522303		Cover, Electricals, 19, Compressor		Appelez-nous	-
14	5304530284		Support, Evaporator, Lh		Appelez-nous	-
15	5304524953		Heater, Defrost			Immediately	$ 165.56
17	5304538465		Controller, Compressor Ptc   (Replaces: 5304522267)			Immediately	$ 33.52
18	5304524607		Clamp, Compressor				$ 2.89
19	5304525042		Tube, Drain, Extension			Immediately	$ 9.86
20	5304524755		Trough, Drain, Evaporator				$ 51.34
22	5304523693		Base Assembly, Compressor, W/rollers		Appelez-nous	-
24	5304530011		Capacitor, 24 #			Immediately	$ 27.86
29	5304535399		Condenser Fan, Assembly, 29 #, W/shroud				$ 94.28
30	5304539561		Compressor, S/a-pur, Th1114hy Mx				$ 154.40
31	5304523709		Pan, Drain				$ 35.42
50	5304524126		Main Board, Assembly, W/housing			Immediately	$ 206.89
51	5304530111		Drain Jumper, Assembly, W/seal				$ 19.52
53	5304525744		Cover, Drain Jumper				$ 9.68
81	5304519765		Screw, Hx Wash Hd, M4.2 X 12			Immediately	$ 3.03
29A	8582416395027		Blade, Condenser Fan		Appelez-nous	-
29B	5304539496		Motor, Condenser Fan   (Replaces: 5304531260)				$ 56.33
30A	811978901		Grommet, Compressor		Appelez-nous	-
NI	30534600		Clip, Plastic, W/adhesive				$ 3.79
NI	241500305		Screw, Hex Hd, #8-18 X 5/8				$ 3.03
NI	240569202		Screw, 8-18 X .500				$ 2.12
NI	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17
NI	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82

    View Diagram in Separate Window       Print Part List
