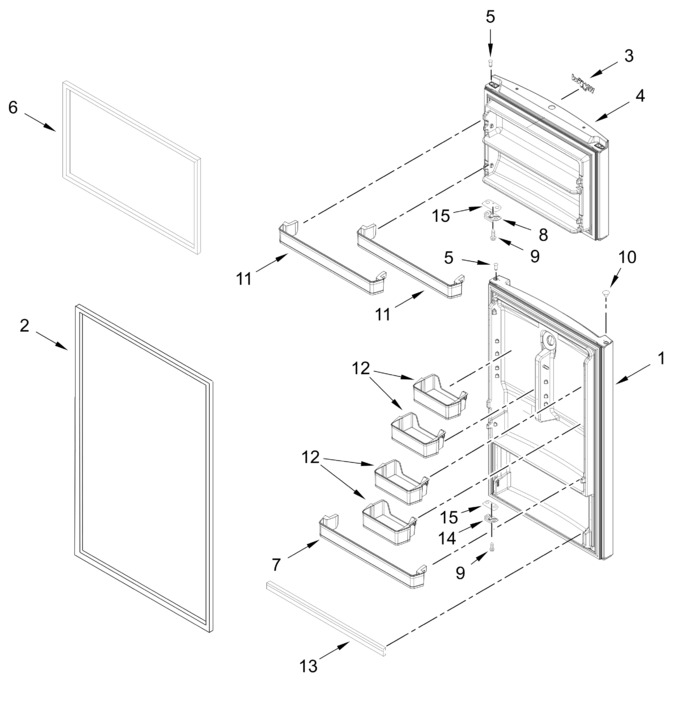

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10803934		Refrigerator Door Assembly (black, Includes Door Gasket)   (Replaces: W10803934)				$ 593.06
2	WP2319264B		Gasket, Rc Door (black)   (Replaces: 2264723)				$ 277.59
3	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
4	LW10803963		Freezer Door Assembly (black, Includes Door Gasket)   (Replaces: W10803963)				$ 593.06
5	W11189115		Thimble, Top (black)   (Replaces: W10334042)				$ 10.89
6	WP2319263B		Gasket, Fc Door (black)   (Replaces: W10843447)			Immediately	$ 229.95
7	W11830188		Bin, Door (rc)   (Replaces: W11769711)		Appelez-nous	-
8	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
9	WP488921		Screw   (Replaces: 488921)			Immediately	$ 6.98
10	WP2212651		Plug, Hinge Hole (black)   (Replaces: 2212651)				$ 20.75
11	W11830190		Bin, Door (fc)   (Replaces: W11767123)		Appelez-nous	-
12	W11830189		Bin, Large Door (rc)   (Replaces: W11785038)		Appelez-nous	-
13	W10245587		Trim, Door Shelf		Appelez-nous	-
14	W10492012		Bracket, Door Stop				$ 14.45
15	WP2258681W		Shim, Door Stop (white)   (Replaces: 2258681W)			Immediately	$ 6.47
