Cabinet Parts
Door Parts
Liner Parts
Optional Parts
Shelf Parts
Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

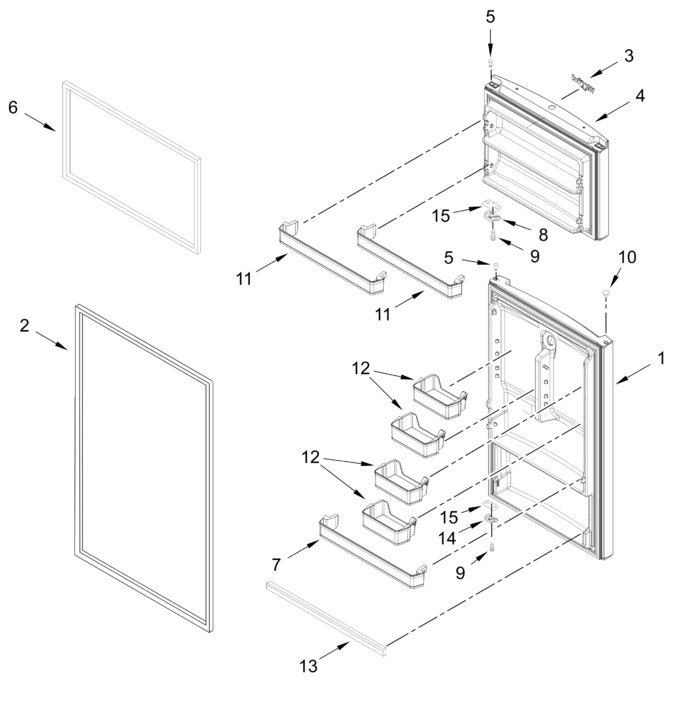

| 1 | LW10852095 | Refrigerator Door (white, Includes Door Gasket) (Replaces: W10852095) |
|
$ 613.83 | |||||
| 2 | WP2319264W | Gasket, Door (white) (Replaces: 2264727) |
|
Immediately | $ 282.07 | ||||
| 3 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 4 | LW10852088 | Freezer Door (white, Includes Door Gasket) (Replaces: W10852088) |
|
$ 653.72 | |||||
| 5 | W11759045 | Thimble, Top (white) (Replaces: W10492018) |
|
Immediately | $ 10.58 | ||||
| 6 | WP2319263W | Gasket, Fc Door (white) (Replaces: W10840863) |
|
Immediately | $ 135.93 | ||||
| 7 | W11830188 | Bin, Door (rc) (Replaces: W11769711) |
|
- | |||||
| 8 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 9 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 6.98 | ||||
| 10 | WP2212648 | Plug, Hinge Hole (white) (Replaces: 2212648) |
|
$ 7.02 | |||||
| 11 | W11830190 | Bin, Door (fc) (Replaces: W11767123) |
|
- | |||||
| 12 | W11830189 | Bin, Large Door (rc) (Replaces: W11785038) |
|
- | |||||
| 13 | W10245587 | Trim, Door Shelf |
|
- | |||||
| 14 | W10492012 | Bracket, Door Stop |
|
$ 14.45 | |||||
| 15 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 6.47 |
