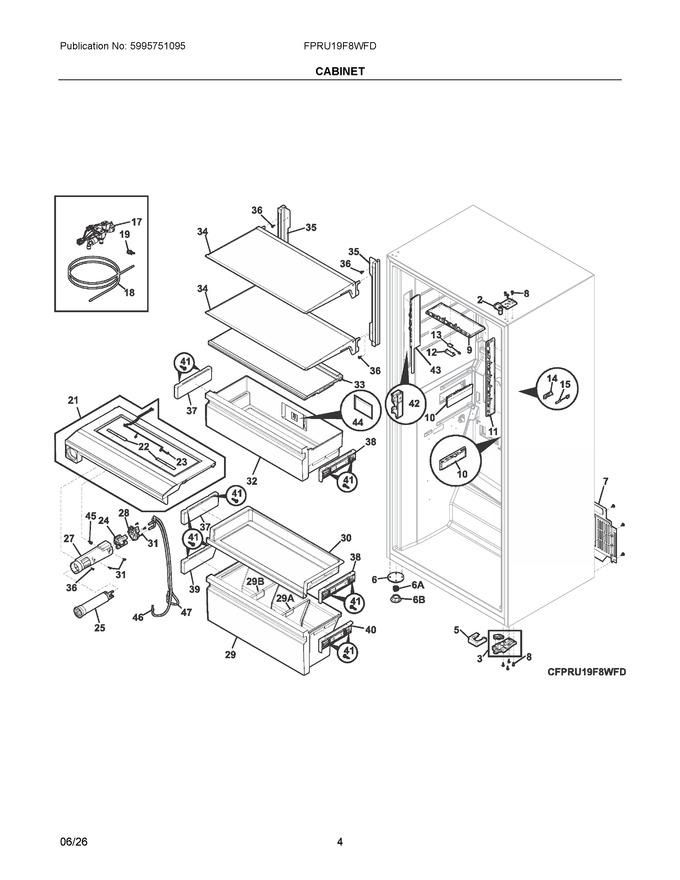

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304524636		Hinge, Door, Rh Upper				$ 242.59
3	5304525238		Hinge Assembly, Lower, Rh			Immediately	$ 65.08
5	5304525237		Cover, Hinge, Rh Lower				$ 11.17
6	5304528813		Base, Leveler Leg, Front			Immediately	$ 15.51
7	5304525858		Cover, Access, Machine Compt.				$ 55.67
8	5304522279		Screw, Hex Wsh Hd Quad, M5 X 16			Immediately	$ 3.08
9	5304530711		Light Assembly, Led, Single, W/lens			Immediately	$ 47.19
10	5304530715		Light Assembly, Led, Wide Double, W/lens			Immediately	$ 75.83
11	5304530717		Light Assembly, Led, Triple, W/lens			Immediately	$ 88.46
12	5304524761		Cover, Reed Switch				$ 10.85
13	5304527992		Switch, Reed   (Replaces: 242326001)			Immediately	$ 81.69
14	5304524759		Cover, Sensor				$ 10.85
15	5303918775		Thermistor Kit, Temperature, Ntc, W/connectors			Immediately	$ 23.74
17	5304524756		Valve, Water, Triple Solenoid			Immediately	$ 132.69
18	5304528820		Tube, Water, Dispenser			Immediately	$ 47.50
19	5304528819		Clamp, Dispenser Tube, 7/16				$ 9.86
21	140130183225		Control Cover, Assy, Tcd Hlndr   (Replaces: 5304539142)				$ 238.37
22	5304539141		Led Cluster, Pcba, Polaris		Appelez-nous	-
23	5304524766		Harness, Jumper, Led				$ 11.06
24	140156010054		Manifold, Water Filter   (Replaces: 5304537198)				$ 30.57
25	FPPWFU01		Filter, Water, Wf-1, Frig Purepour			Immediately	$ 80.38
27	5304524837		Bracket, Water Filter				$ 23.13
28	5304524839		Support, Water Filter			Immediately	$ 14.46
29	5304524710		Drawer Assembly, Full Width, Lower, W/dividers				$ 242.64
30	5304524706		Shelf Assembly, Slide Out, W/glass				$ 205.61
31	5304453707		Screw, Quad Hilo, #8-18 X 0.50   (Replaces: 241953901)			Immediately	$ 15.92
32	5304524701		Drawer Assembly, Upper, W/trim				$ 228.01
33	5304539607		Cover, Crisper, Assembly				$ 146.59
34	5304524669		Shelf Assembly, Glass, W/trim			Immediately	$ 205.25
35	5304539145		Rail, Shelf Support, Assembly, Cantilever		Appelez-nous	-
36	5304519765		Screw, Hx Wash Hd, M4.2 X 12			Immediately	$ 3.03
37	5304524850		Slide Assembly, 9 Inch, Lh				$ 91.82
38	5304524849		Slide Assembly, 9 Inch, Rh				$ 91.09
39	5304524852		Slide Assembly, 8 Inch, Lh				$ 87.48
40	5304524851		Slide Assembly, 8 Inch, Rh				$ 87.48
41	5304524845		Screw, Quad Hilo, 4.2x1.41x15.9, Slide Mtg			Immediately	$ 2.89
42	140129367052		Dispenser, Water, Assembly   (Replaces: 140129367037)		Appelez-nous	-
43	5304536787		Lamp, Led, Assembly, W/dispenser		Appelez-nous	-
44	FRPAPKRF		Absorber, Ethylene			Immediately	$ 15.60
45	5304525288		Screw, Shoulder, M4.2 Hi-lo Qdrx				$ 2.28
46	5304539695		Hose, Filter, Outlet			Immediately	$ 13.04
47	5304539694		Hose, Filter, Inlet			Immediately	$ 12.90
29A	140138033018		Divider, Lower Drawer, Tt, Rh		Appelez-nous	-
29B	140138033026		Divider, Lower Drawer, Tt, Lh		Appelez-nous	-
6A	5304528814		Nut, Leg Leveler			Immediately	$ 8.68
6B	5304528815		Foot, Leg Leveler			Immediately	$ 10.13
NI	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
NI	5304534034		Screw, Type Ab, #10-16		Appelez-nous	-
NI	5304523801		Screw, Hex Wash Hd, M4 X 10		Appelez-nous	-
NI	241500305		Screw, Hex Hd, #8-18 X 5/8				$ 3.03
NI	241705801		Spacer, Shelf/wtr Tube				$ 7.09
NI	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17
NIA	5304528818		Screw, Shoulder, #8-18 X 5/8				$ 6.82
