SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet/drum

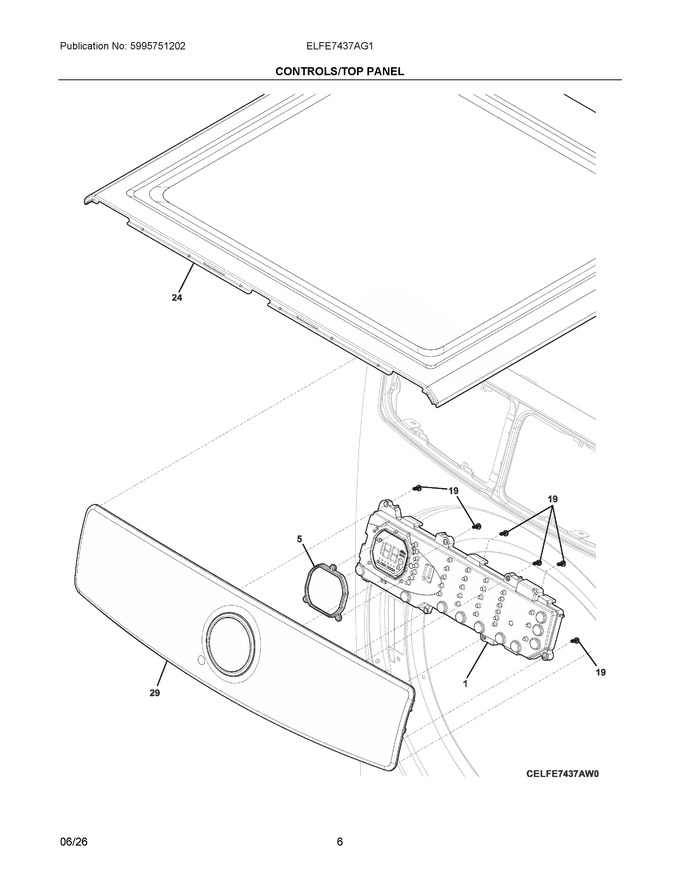

03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140203380112		Board Assembly, Ui Linear				$ 138.37
5	5304505345		Seal, Display Area				$ 15.47
19	5304505441		Screw, Pph B, 6-20x.375				$ 6.51
24	5304535702		Top Panel, Glacier Blue				$ 181.17
29	5304535777		Console Assembly, W/overlay		Appelez-nous	-
NI	5304521443		Harness, Wiring, Main			Immediately	$ 200.64
NI	137150200		Terminal Block Kit, Main				$ 31.90
NI	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
