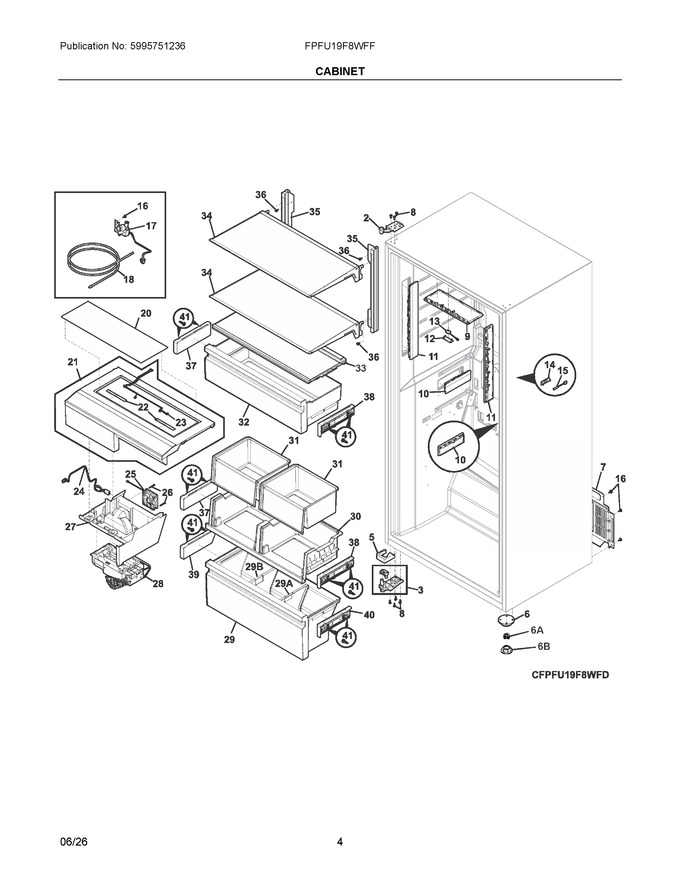

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304524637 | Hinge, Door, Lh Upper |
|
$ 176.97 | |||||
| 3 | 5304525229 | Hinge Assembly, Lower, Lh |
|
Immediately | $ 72.05 | ||||
| 5 | 5304525228 | Cover, Hinge, Lh Lower |
|
$ 10.85 | |||||
| 6 | 5304528813 | Base, Leveler Leg, Front |
|
Immediately | $ 15.51 | ||||
| 7 | 5304525858 | Cover, Access, Machine Compt. |
|
$ 55.67 | |||||
| 8 | 5304522279 | Screw, Hex Wsh Hd Quad, M5 X 16 |
|
Immediately | $ 3.08 | ||||
| 9 | 5304530715 | Light Assembly, Led, Wide Double, W/lens |
|
Immediately | $ 75.83 | ||||
| 10 | 5304530711 | Light Assembly, Led, Single, W/lens |
|
Immediately | $ 47.19 | ||||
| 11 | 5304530717 | Light Assembly, Led, Triple, W/lens |
|
Immediately | $ 88.46 | ||||
| 12 | 5304524761 | Cover, Reed Switch |
|
$ 10.85 | |||||
| 13 | 5304527992 | Switch, Reed (Replaces: 242326001) |
|
Immediately | $ 81.69 | ||||
| 14 | 5304524759 | Cover, Sensor |
|
$ 10.85 | |||||
| 15 | 5303918775 | Thermistor Kit, Temperature, Ntc, W/connectors |
|
Immediately | $ 23.74 | ||||
| 16 | 241500305 | Screw, Hex Hd, #8-18 X 5/8 |
|
$ 3.03 | |||||
| 17 | 5304538014 | Valve, Water, Single, Solenoid |
|
Immediately | $ 46.56 | ||||
| 18 | 5304536764 | Hose Assembly, Click Connex, Tall T |
|
Immediately | $ 20.57 | ||||
| 20 | 5304524780 | Glass, Control Cover |
|
$ 103.38 | |||||
| 21 | 140130183233 | Control Cover, Assembly, Frz Tt (Replaces: 5304538685) |
|
Immediately | $ 211.32 | ||||
| 22 | 5304539141 | Led Cluster, Pcba, Polaris |
|
- | |||||
| 23 | 5304524766 | Harness, Jumper, Led |
|
$ 11.06 | |||||
| 24 | 5304524779 | Harness, Inetrmediate, To Ice Maker |
|
$ 28.59 | |||||
| 25 | 5304524796 | Motor, Fan, Ice Maker |
|
Immediately | $ 176.35 | ||||
| 26 | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 11.38 | ||||
| 27 | 5304524652 | Housing, Ice Maker |
|
$ 51.34 | |||||
| 28 | 243297610 | Ice Maker, Assembly, 6-pin |
|
Immediately | $ 154.31 | ||||
| 29 | 5304524710 | Drawer Assembly, Full Width, Lower, W/dividers |
|
$ 242.64 | |||||
| 30 | 5304524708 | Shelf Assembly, Slide Out |
|
$ 174.23 | |||||
| 31 | 140130150026 | Basket, Ice |
|
$ 54.41 | |||||
| 32 | 5304524702 | Drawer Assembly, Full Width, Upper |
|
Immediately | $ 208.11 | ||||
| 33 | 140266479033 | Crisper Cover, Assembly, W/glass |
|
- | |||||
| 34 | 5304524669 | Shelf Assembly, Glass, W/trim |
|
Immediately | $ 205.25 | ||||
| 35 | 5304539145 | Rail, Shelf Support, Assembly, Cantilever |
|
- | |||||
| 36 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.03 | ||||
| 37 | 5304524850 | Slide Assembly, 9 Inch, Lh |
|
$ 91.82 | |||||
| 38 | 5304524849 | Slide Assembly, 9 Inch, Rh |
|
$ 91.09 | |||||
| 39 | 5304524852 | Slide Assembly, 8 Inch, Lh |
|
$ 87.48 | |||||
| 40 | 5304524851 | Slide Assembly, 8 Inch, Rh |
|
$ 87.48 | |||||
| 41 | 5304524845 | Screw, Quad Hilo, 4.2x1.41x15.9, Slide Mtg |
|
Immediately | $ 2.89 | ||||
| 28A | 140213829033 | Motor-fan, Radial, Evaporator (Replaces: 5304539146) |
|
Immediately | $ 49.81 | ||||
| 29A | 140138033018 | Divider, Lower Drawer, Tt, Rh |
|
- | |||||
| 29B | 140138033026 | Divider, Lower Drawer, Tt, Lh |
|
- | |||||
| 6A | 5304528814 | Nut, Leg Leveler |
|
Immediately | $ 8.68 | ||||
| 6B | 5304528815 | Foot, Leg Leveler |
|
Immediately | $ 10.13 | ||||
| NI | 30534600 | Clip, Plastic, W/adhesive |
|
$ 3.79 | |||||
| NI | 5304534034 | Screw, Type Ab, #10-16 |
|
- | |||||
| NI | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| NI | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 38.39 |
