SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet

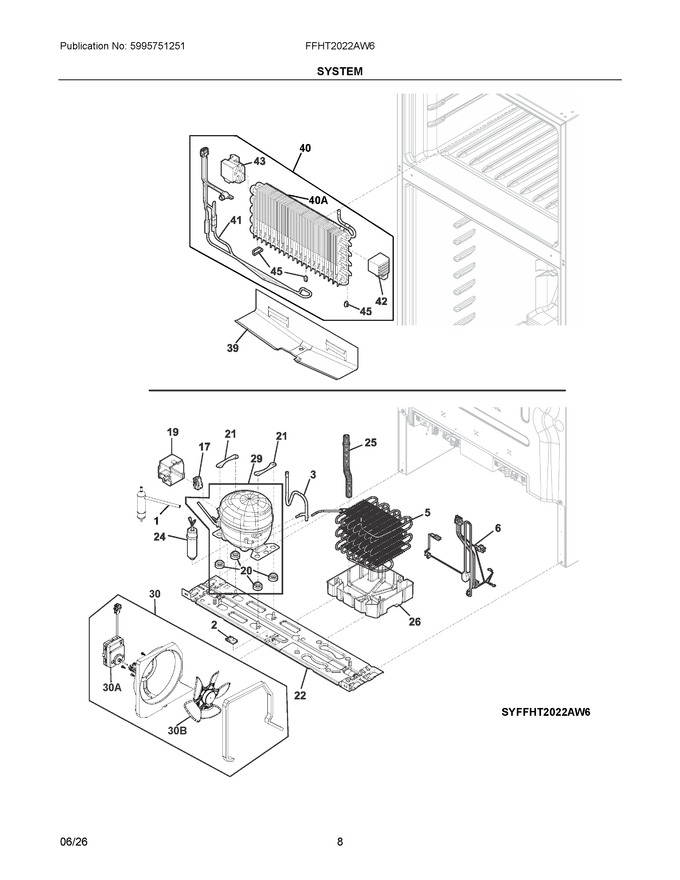

04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A19676501		Dryer Assembly, Filter   (Replaces: 5304522277)			Immediately	$ 99.73
2	5304456288		Clamp, Wiring Harness, Galv Steel, Strn Relief		Appelez-nous	-
3	5304519693		Tube, Suction Jumper				$ 31.10
5	5304530007		Condenser, Dynamic			Immediately	$ 87.62
6	5304519649		Harness, Wiring, Machine Compt.			Immediately	$ 98.87
17	5304538465		Controller Qpe2			Immediately	$ 33.52
19	5304522303		Cover, Electricals, 19, Compressor		Appelez-nous	-
20	5304522323		Grommet, Compressor				$ 38.68
21	5304524607		Clamp, Compressor				$ 2.89
22	5304519667		Base Assembly, Compressor, W/rollers			Immediately	$ 64.46
24	5304530011		Capacitor, 24 #			Immediately	$ 27.86
25	5304519743		Tube, Drain Extension			Immediately	$ 8.34
26	5304519674		Pan, Drain				$ 39.47
29	5304540013		Compressor, Te1114hy, Jiax		Appelez-nous	-
30	5304539805		Shroud, Assy, Condenser Fan, Br		Appelez-nous	-
39	5304519679		Trough, Evap Drain				$ 57.64
40	4056037197		Evaporator Assembly		Appelez-nous	-
41	5304522340		Heater, Evap Defrost, W/thermostat			Immediately	$ 88.79
42	5304522326		Support, Evaporator, Rh				$ 7.59
43	5304522327		Support, Evaporator, Lh				$ 7.59
45	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82
30A	5304539496		Motor, Fan, Condenser				$ 56.33
30B	8582416395027		Blade, Condenser Fan		Appelez-nous	-
40A	5304539653		Evaporator Coil, 8 Mm		Appelez-nous	-
NI	5304534034		Screw, Type Ab, #10-16		Appelez-nous	-
NI	240569202		Screw, 8-18 X .500				$ 2.12
NI	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17
NI	241500305		Screw, Hex Hd, #8-18 X 5/8				$ 3.03

    View Diagram in Separate Window       Print Part List
