SELECT A DIAGRAM

01 - Cover Sheet

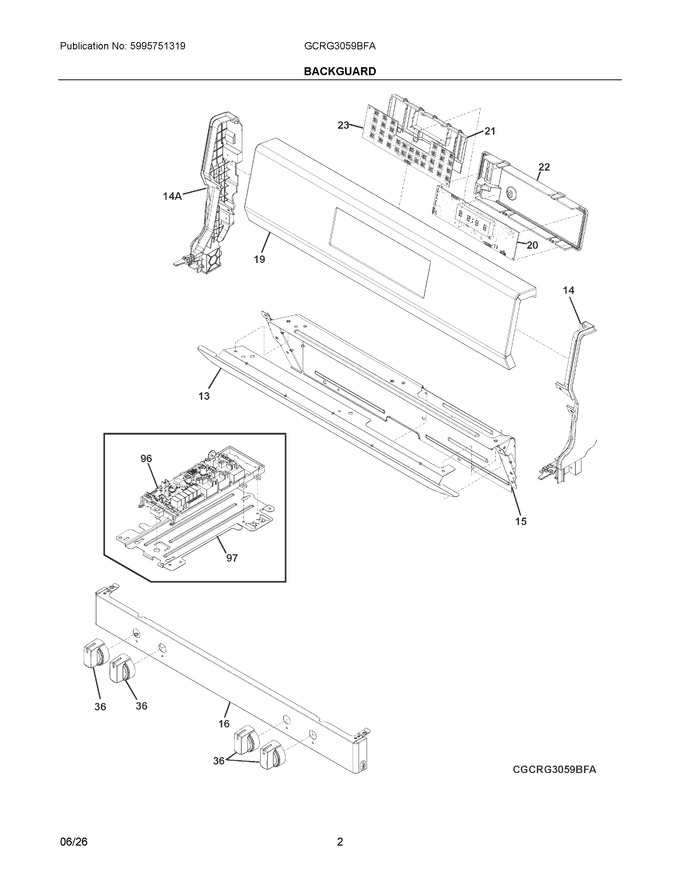

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Schematic


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	5304526526		Deflector, Flue, Black		Appelez-nous	-
14	140283307068		Cap, Control Panel, Black, Rh			Immediately	$ 32.99
15	140270581014		Shield, Backguard, Inner		Appelez-nous	-
16	5304528483		Panel, Manifold, Stainless				$ 146.61
19	140170453470		Control Panel Assembly, Stainless		Appelez-nous	-
20	140225818172		User Interface Assembly, Ui481g		Appelez-nous	-
21	5304536302		Cover, Control				$ 18.11
22	5304533876		Chassis, Control			Immediately	$ 17.91
23	140199403027		Control Board, Hmi Hector				$ 49.37
36	5304536322		Knob, Top Valve, Stainless				$ 39.34
56	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
96	140171068053		Pc Board, Ovc Relay			Immediately	$ 126.93
97	5304528372		Bracket, Ovc Board				$ 11.68
14A	140283307050		Cap, Control Panel, Black, Lh			Immediately	$ 31.28
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.29
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304533904		Harness, Wiring, Macs Panel, To Ui Board				$ 15.83
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
