SELECT A DIAGRAM

Cabinet Parts


Door Parts


Liner Parts


Optional Parts


Shelf Parts


Unit Parts

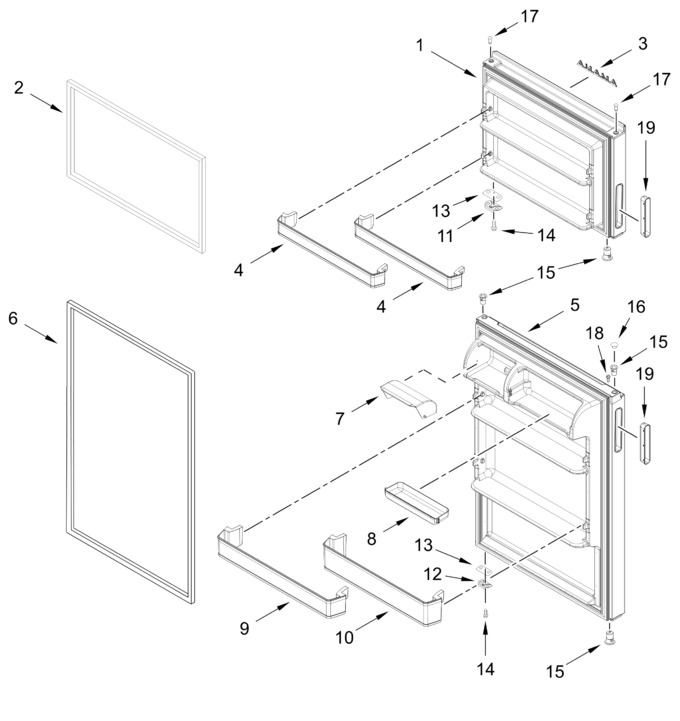

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11826362		Freezer Door Assembly (black, Includes Door Gasket And Handle Cup)   (Replaces: W11778288)		Appelez-nous	-
2	WP2319263B		Gasket, Fc Door (black)   (Replaces: 2264722)			Immediately	$ 229.95
3	W11318226		Badge (black)   (Replaces: W11046243)				$ 72.32
4	W11830190		Bin, Door (fc)   (Replaces: W11767123)		Appelez-nous	-
5	W11826645		Refrigerator Door Assembly (black, Includes Door Gasket And Handle Cup)   (Replaces: W11778293)		Appelez-nous	-
6	2319265B		Gasket, Rc Door (black)   (Replaces: 2264724)				$ 282.43
7	WP2207942		Door, Compartment   (Replaces: 2207942)			Immediately	$ 52.88
8	W11831826		Bin, Rc Door Tray   (Replaces: W11764418)		Appelez-nous	-
9	W11831819		Bin, Rc Door (top)   (Replaces: W11767327)		Appelez-nous	-
10	W11831824		Bin, Rc Door (interm)   (Replaces: W11757898)		Appelez-nous	-
11	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
12	W10492012		Bracket, Door Stop				$ 14.45
13	2258681B		Shim, Door Stop (black)				$ 38.85
14	WP488921		Screw   (Replaces: 488921)			Immediately	$ 6.98
15	W11189115		Thimble, Top (black)   (Replaces: W10334042)				$ 10.89
16	WP2212651		Plug, Hinge Hole (black)   (Replaces: 2212651)				$ 20.75
17	WP2182181		Thimble, Top (white)   (Replaces: 2200087)				$ 6.98
18	WP8281206		Screw   (Replaces: 8281206)				$ 7.15
19	W11826171		Handle, Cup (black)   (Replaces: W11759455)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11415957		Door Reversal Kit, Black Model   (Replaces: W10676239)				$ 68.95

    View Diagram in Separate Window       Print Part List
