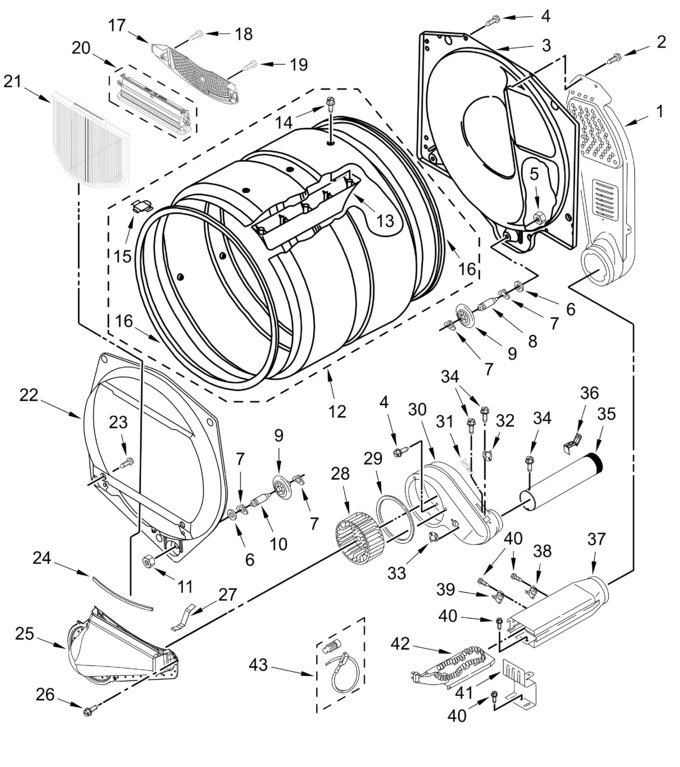

Bulkhead Parts
Cabinet Parts
Optional Parts (not Included)
Top And Console Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11677720 | Assembly, Air Duct (Replaces: W11104018) |
|
$ 189.19 | |||||
| 2 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 3 | W11299300 | Bulkhead, Rear (Replaces: W11162462) |
|
$ 315.10 | |||||
| 4 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 5 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 7.64 | ||||
| 6 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 12.63 | ||||
| 7 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 7.92 | ||||
| 8 | WPW10359272 | Shaft, Drum Roller (left Hand Thread) (Replaces: W10359272) |
|
Immediately | $ 52.63 | ||||
| 9 | W11817605 | Roller, Support |
|
- | |||||
| 10 | WPW10359271 | Shaft, Drum Roller (right Hand Thread) (Replaces: W10359271) |
|
Immediately | $ 55.99 | ||||
| 11 | W11812294 | Nut, Hex (right Hand Thread) (Replaces: 3934666) |
|
$ 10.94 | |||||
| 12 | W10545923 | Assembly, Drum |
|
$ 393.08 | |||||
| 13 | W11782150 | Baffle, Drum (Replaces: 697693) |
|
Immediately | $ 81.92 | ||||
| 14 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 6.98 | ||||
| 15 | 8066086 | Plug, Drum Hole |
|
$ 9.68 | |||||
| 16 | 280114 | Seal, Drum (Replaces: W10521118) |
|
Immediately | $ 63.74 | ||||
| 17 | W11086603 | Grill, Outlet (Replaces: W10692558) |
|
Immediately | $ 31.63 | ||||
| 18 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 7.69 | ||||
| 19 | WP488729 | Screw (Replaces: 695240) |
|
Immediately | $ 7.01 | ||||
| 20 | W11129408 | Assembly, Outlet Housing (Replaces: W10685669) |
|
$ 47.95 | |||||
| 21 | W10120998 | Screen, Lint (Replaces: W10049370) |
|
$ 60.44 | |||||
| 22 | WP697557 | Bulkhead, Front (Replaces: 697557) |
|
$ 187.23 | |||||
| 23 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 24 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.17 | ||||
| 25 | WPW10128606 | Assembly, Lint Duct (Replaces: 8066168) |
|
$ 186.41 | |||||
| 26 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.04 | |||||
| 27 | WP8066208 | Clip, Spring (Replaces: W10345456) |
|
$ 7.35 | |||||
| 28 | WPW10349492 | Wheel, Blower (Replaces: W10349492) |
|
Immediately | $ 108.30 | ||||
| 29 | WP697770 | Seal, Plate Cover (Replaces: 697770) |
|
Immediately | $ 7.09 | ||||
| 30 | W11744012 | Housing, Blower (Replaces: W10135254) |
|
$ 104.36 | |||||
| 31 | WP3392519 | Fuse, Thermal (91c) (Replaces: 3392519) |
|
Immediately | $ 22.46 | ||||
| 32 | WPW10131836 | Thermostat (Replaces: W10131836) |
|
$ 142.70 | |||||
| 33 | WPW10178809 | Thermostat 155~f Electronic (Replaces: W10178809) |
|
$ 108.78 | |||||
| 34 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.04 | ||||
| 35 | 279936 | Pipe, Exhaust (Replaces: 8066224) |
|
$ 132.16 | |||||
| 36 | W11684573 | Clip, Exhaust (Replaces: 8572105) |
|
$ 7.00 | |||||
| 37 | W10802681 | Assembly, Weld Heater Box (Replaces: W10891205) |
|
Immediately | $ 116.70 | ||||
| 38 | 279973 | Kit, Thermal Cut-off (includes Thermostat) |
|
Immediately | $ 68.04 | ||||
| 39 | WP3391914 | Thermostat, Hi Limit (Replaces: 3391914) |
|
Immediately | $ 107.52 | ||||
| 40 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 41 | 8066099 | Bracket, Heater Box |
|
$ 21.92 | |||||
| 42 | W10864898 | Element, Heater (Replaces: W10832958) |
|
$ 287.66 | |||||
| 43 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.13 |
