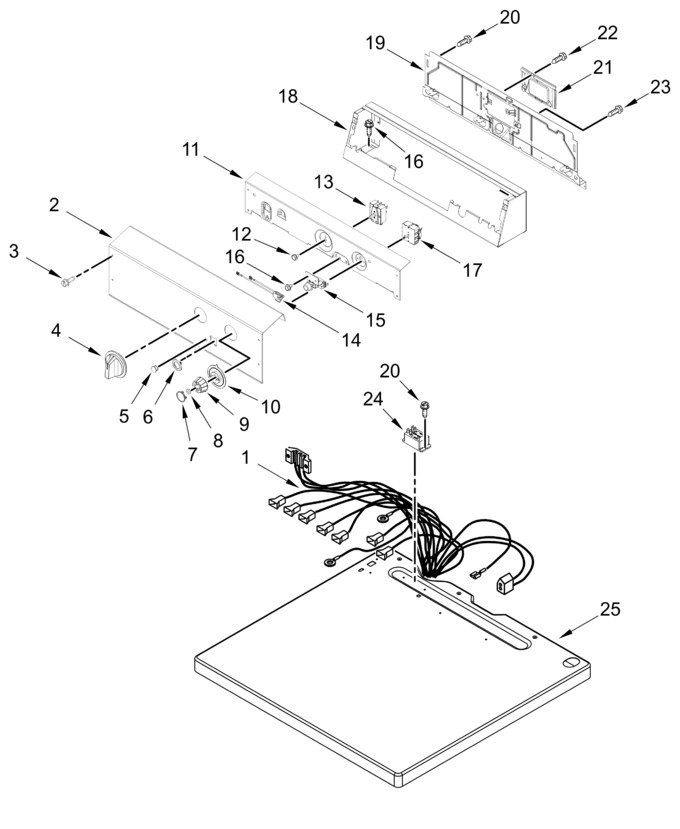

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10864827		Harness, Main		Appelez-nous	-
2	W11101053		Fascia   (Replaces: W10845281)		Appelez-nous	-
3	WPW10131119		Screw   (Replaces: W10386302)				$ 6.26
4	W11643382		Knob   (Replaces: W10133507)			Immediately	$ 23.64
5	WPW10133502		Assembly, Indicator Lights   (Replaces: W10133502)				$ 11.58
6	W10510149		Bezel - Pts			Immediately	$ 24.54
7	WPW10133501		Cap, Knob   (Replaces: W10133501)				$ 54.76
8	W10155650		Nut, Hex				$ 12.03
9	W10906058		Knob		Appelez-nous	-
10	W10133506		Skirt, Dial				$ 17.06
11	W10461071		Back Bracket, Non-coin		Appelez-nous	-
12	W10139100		Screw				$ 11.15
13	W10327100		Switch, Cycle Selection				$ 184.35
14	W10139459		Lamp, Indicator		Appelez-nous	-
15	W11097274		Switch, Push To Start   (Replaces: W10424310)				$ 60.71
16	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.04
17	W11101054		Timer, Dryer   (Replaces: W10878421)		Appelez-nous	-
18	W11124005		Console				$ 204.36
19	W10863352		Panel, Rear (console)		Appelez-nous	-
20	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.01
21	W10601020		Cover, Terminal Block		Appelez-nous	-
22	WP90767		Screw   (Replaces: W10748311)			Immediately	$ 7.04
23	W10850756		Screw   (Replaces: W10773242)				$ 6.98
24	WP1188043		Relay, Heater 230v   (Replaces: 1188043)				$ 99.12
25	WPW10136704		Top (white)   (Replaces: W10136704)				$ 234.39
