SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet

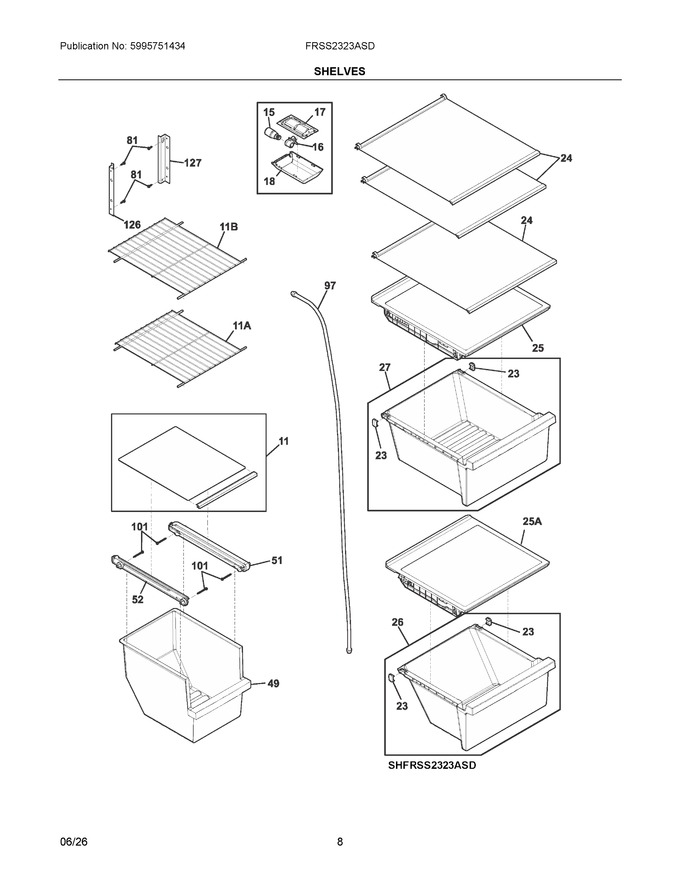

05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	140279024412		Glass Shelf, Assembly, White, Fz, W/trim		Appelez-nous	-
15	5304522314		Bulb, Light, E17/12 Led			Immediately	$ 40.19
16	5304522315		Socket, Led Light			Immediately	$ 10.62
17	5304526001		Housing, Light, Fresh Food				$ 12.13
18	5304526002		Lens, Light, Fresh Food				$ 22.75
23	5304525911		Clip, Slide, Crisper			Immediately	$ 10.62
24	140279024404		Glass Shelf, Assembly, White, Ff, W/trim		Appelez-nous	-
25	140116199146		Crisper Cover, Assembly, Glass, Upper, W/trim-gasket   (Replaces: 5304527178)		Appelez-nous	-
26	5304535372		Crisper Pan, Lower, W/slide Clip				$ 96.99
27	5304535373		Crisper Pan, Upper, W/slide Clip				$ 114.90
49	5304527154		Basket, Freezer, Sliding				$ 78.32
51	5304539495		Hanger-basket, Rh		Appelez-nous	-
52	5304539494		Hanger-basket, Lh		Appelez-nous	-
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
97	242220134		Tube, Water, 91.4", Natural, Filter Base To, Secondary Valve				$ 21.99
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 13.46
126	241674401		Channel, Auger Mtg, Lh				$ 47.48
127	241674402		Channel, Auger Mtg, Rh				$ 43.24
11A	5304532465		Shelf, Fixed, Freezer   (Replaces: 241657501)				$ 54.10
11B	5304532464		Shelf, Fixed Upper, Freezer   (Replaces: 241657503)		Appelez-nous	-
25A	5304535417		Crisper Cover, Assembly, Glass, Lower, W/trim-gasket				$ 82.16
NI	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
NIA	242200102		Clip, Tubing, 90 Deg Elbow				$ 10.63

    View Diagram in Separate Window       Print Part List
