01 - Cover Sheet
02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:

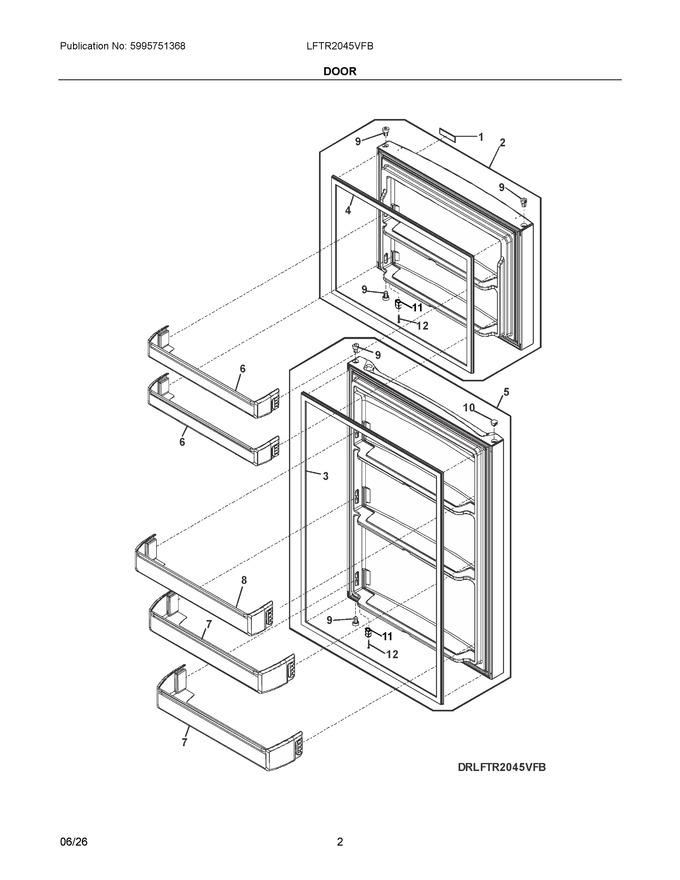

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304511146 | Badge, Frigidaire, Chrome |
|
Immediately | $ 47.03 | ||||
| 2 | 5304529921 | Door Assembly, Freezer, Stainless, Ez Care |
|
- | |||||
| 3 | 5304528903 | Gasket, Door, Gray, Fresh Food |
|
Immediately | $ 205.12 | ||||
| 4 | 5304528904 | Gasket, Door, Gray, Freezer |
|
Immediately | $ 180.01 | ||||
| 5 | 5304529919 | Door Assembly, Fresh Food, Stainless, Ez Care |
|
- | |||||
| 6 | 5304524054 | Bin, Door, White, Freezer |
|
$ 50.61 | |||||
| 7 | 5304524055 | Bin, Door, 6", Refrigerator |
|
Immediately | $ 81.06 | ||||
| 8 | 5304536572 | Bin, Door, 4", Clear |
|
$ 122.05 | |||||
| 9 | 5304522194 | Bearing, Hinge, Gray |
|
Immediately | $ 2.28 | ||||
| 10 | 5304522187 | Cover, Hinge Bearing, Gray |
|
Immediately | $ 7.44 | ||||
| 11 | 5304536275 | Stopper, Door, Gray |
|
Immediately | $ 3.77 | ||||
| 12 | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 11.38 |
