SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer

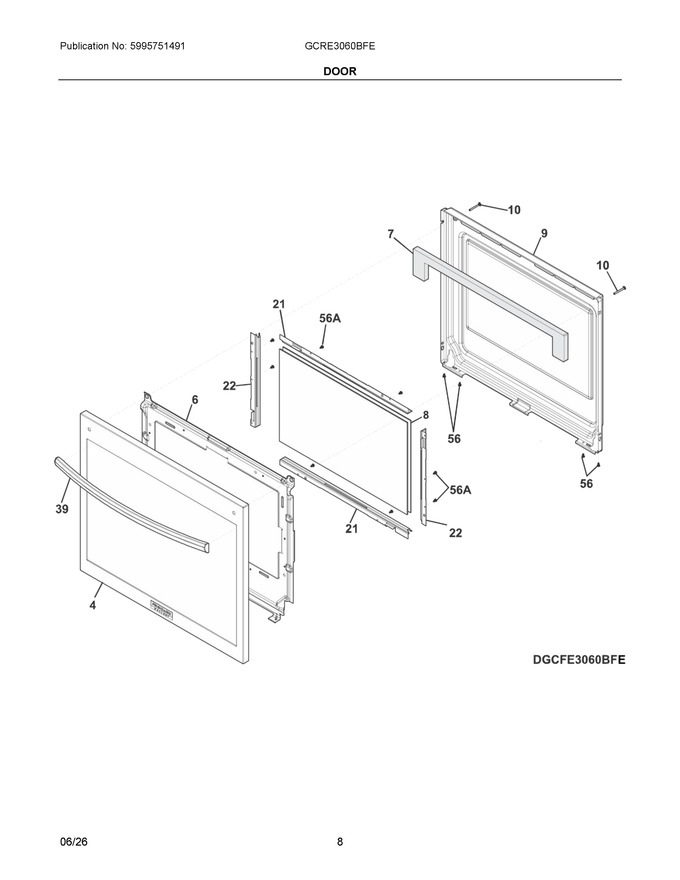

05 - Door


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5304536293		Door Assembly, Outer, Stainless, W/glass			Immediately	$ 216.64
6	5304528103		Shield, Wool				$ 89.82
7	140299178024		Insulation, Top, Door		Appelez-nous	-
8	140163079118		Glass, Door, Inner			Immediately	$ 53.47
9	5304533466		Liner, Oven Door, Midnight Black			Immediately	$ 117.34
10	316433305		Screw, Trus T20, 10-44 X 1.870, Black, Handle Mtg.				$ 2.28
21	5304528104		Bracket, Glass Pack, Horizontal		Appelez-nous	-
22	5304528105		Bracket, Glass Pack, Vertical				$ 10.25
39	140172171054		Handle, Door, Stainless			Immediately	$ 48.57
56	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
56A	5304526532		Screw, M4.2 X 9.5, Black				$ 3.03
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	316483102		Label, Anti-tip				$ 3.56

    View Diagram in Separate Window       Print Part List
