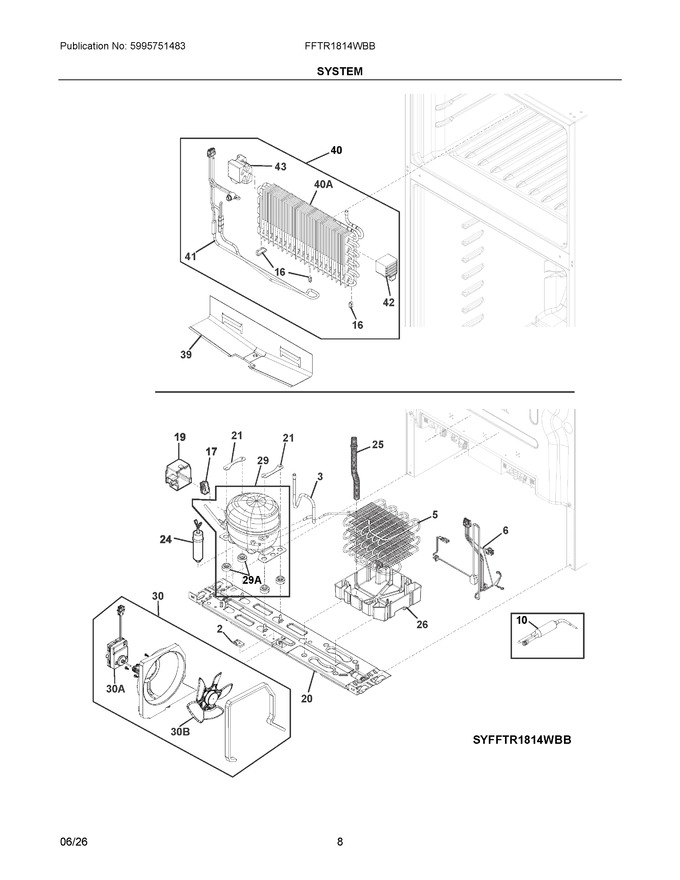

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304456288 | Clamp, Wiring Harness, Galv Steel, Strn Relief |
|
- | |||||
| 3 | 5304519693 | Tube, Suction Jumper |
|
$ 31.10 | |||||
| 5 | 5304530007 | Condenser, Dynamic |
|
Immediately | $ 87.62 | ||||
| 6 | 5304519649 | Harness, Wiring, Machine Compt. |
|
Immediately | $ 98.87 | ||||
| 10 | A19676501 | Dryer Assembly, Filter (Replaces: 5304522277) |
|
Immediately | $ 99.73 | ||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum, (2) |
|
Immediately | $ 59.82 | ||||
| 17 | 5304538465 | Controller, Compressor Ptc (Replaces: 5304522267) |
|
Immediately | $ 33.52 | ||||
| 19 | 5304522303 | Cover, Electricals, 19, Compressor |
|
- | |||||
| 20 | 5304519667 | Base Assembly, Compressor, W/rollers |
|
Immediately | $ 64.46 | ||||
| 21 | 5304524607 | Clamp, Compressor |
|
$ 2.89 | |||||
| 24 | 5304530011 | Capacitor, 24 # |
|
Immediately | $ 27.86 | ||||
| 25 | 5304519743 | Tube, Drain Extension |
|
Immediately | $ 8.34 | ||||
| 26 | 5304519674 | Pan, Drain |
|
$ 39.47 | |||||
| 29 | 5303918884 | Compressor, Assembly, Th1114 (Replaces: 5304522339) |
|
Immediately | $ 193.81 | ||||
| 30 | 5304519734 | Fan Assembly, Condenser, W/shroud-foam |
|
Immediately | $ 156.99 | ||||
| 39 | 5304519679 | Trough, Evap Drain |
|
$ 57.64 | |||||
| 40 | 4056037197 | Evaporator, Assembly (Replaces: 5304529495) |
|
- | |||||
| 41 | 5304522340 | Heater, Evap Defrost, W/thermostat |
|
Immediately | $ 88.79 | ||||
| 42 | 5304522326 | Support, Evaporator, Rh |
|
$ 7.59 | |||||
| 43 | 5304522327 | Support, Evaporator, Lh |
|
$ 7.59 | |||||
| 29A | 811978901 | Grommet, Compressor |
|
- | |||||
| 30A | 5304539496 | Motor, Fan, Condenser |
|
$ 56.33 | |||||
| 30B | 8582416395027 | Blade, Condenser Fan |
|
- | |||||
| 40A | 5304522324 | Evaporator, 8 Mm (Replaces: 140148637014) |
|
Immediately | $ 150.10 | ||||
| NI | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.03 | ||||
| NI | 240569202 | Screw, 8-18 X .500 |
|
$ 2.12 | |||||
| NI | 241500305 | Screw, Hex Hd, #8-18 X 5/8 |
|
$ 3.03 | |||||
| NI | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 15.17 | |||||
| NI | 5304534034 | Screw, Type Ab, #10-16 |
|
- |
