SELECT A DIAGRAM

01 - Cover Sheet

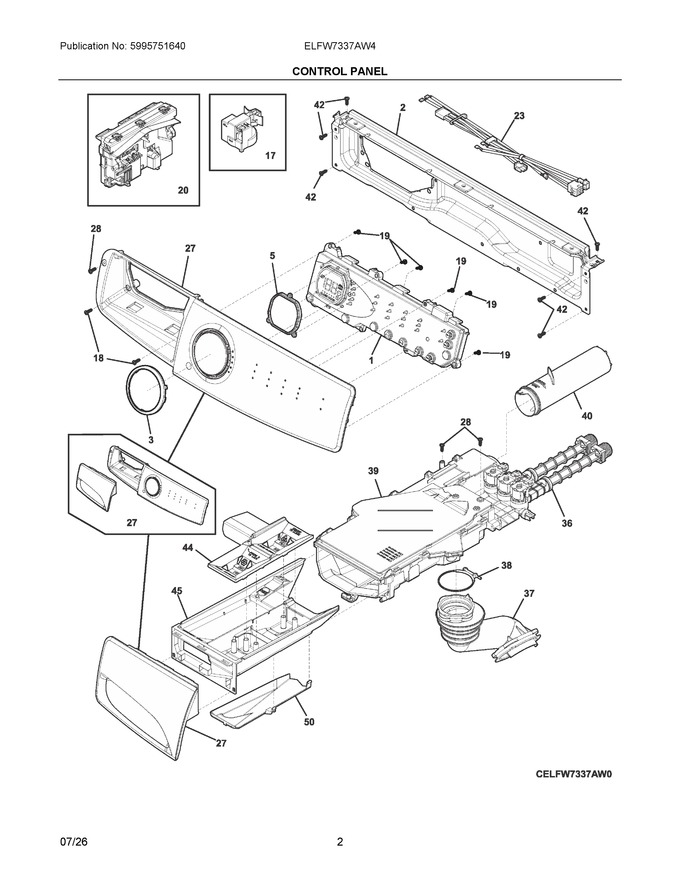

02 - Control Panel


03 - Cabinet/top


04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140203381144		Board Assembly, User Interface, Programmed		Appelez-nous	-
2	5304505086		Bracket, Control Panel				$ 70.85
3	5304505044		Trim, Ring, Chrome				$ 38.26
5	5304505045		Seal, Display Area		Appelez-nous	-
17	5304505436		Sensor Switch, Pressure			Immediately	$ 51.64
18	131302800		Screw, Quadrex Ph, 10-16ab X 0.5			Immediately	$ 26.58
19	5304505441		Screw, Pph B, 6-20x.375				$ 6.51
20	5304537842		Main Board Assembly				$ 144.14
23	5304529725		Harness, Wiring, Main			Immediately	$ 138.66
27	5304529905		Console/handle Assy., W/overlay				$ 133.55
28	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
36	5304510127		Valve Assembly, Dispenser		Appelez-nous	-
38	134372400		Clamp, Tub Hose				$ 64.49
39	5304510131		Housing Assembly, Dispenser, W/valve		Appelez-nous	-
40	134372103		Tube, Disp-to-overflo				$ 20.97
42	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
45	5304510134		Drawer, Dispenser		Appelez-nous	-
50	134409320		Conveyor, Dispenser, Lower   (Replaces: 134370100)			Immediately	$ 366.58
NI	137087000		Screw, Comb Pnhd B, #10-16x.75, (9)			Immediately	$ 11.34
NIA	5304505173		Housing, Control Board, Main				$ 18.60
NIA	134407900		Dampener, Vibration				$ 17.01
NIA	5304529693		Gasket, Console				$ 9.50
NIA	134371300		Gasket, Disp-to-valve			Immediately	$ 51.04
NIA	134629400		Screw, Mc5x8.5 Torx, Cabinet Mtg				$ 12.76
NIB	5304510114		Cable, Grounding, To Cabinet, Main Board				$ 17.78

    View Diagram in Separate Window       Print Part List
