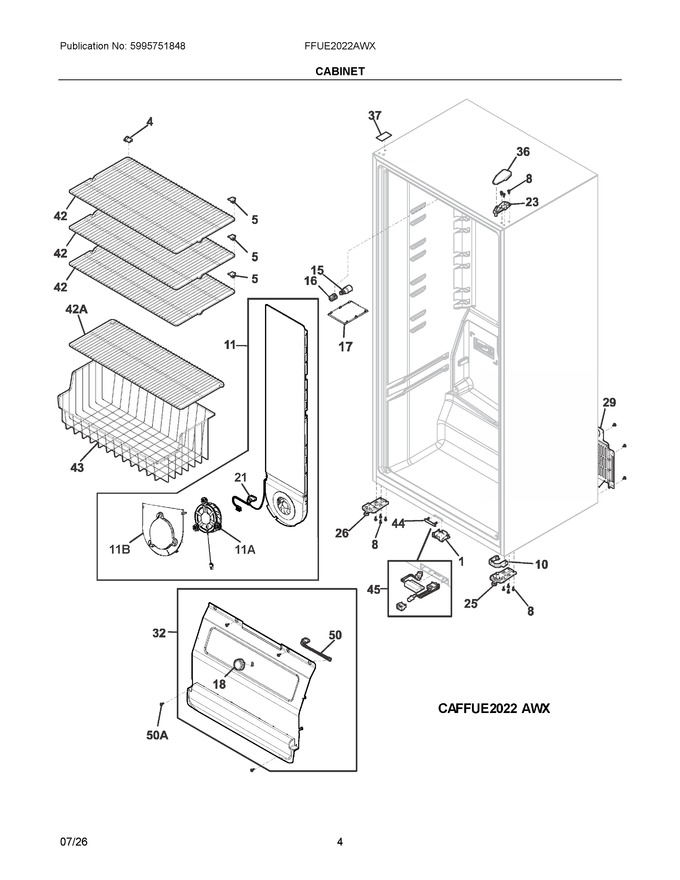

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304523792 | Cover, Housing, Reed Switch |
|
Immediately | $ 7.96 | ||||
| 4 | 5304522258 | Clip, Wire Shelf, Lh |
|
Immediately | $ 9.14 | ||||
| 5 | 5304522259 | Clip, Wire Shelf, Rh |
|
Immediately | $ 9.14 | ||||
| 8 | 5304522279 | Screw, Hex Wsh Hd Quad, M5 X 16 |
|
Immediately | $ 3.08 | ||||
| 10 | 5304522244 | Cover, Hinge Side, White, Lower |
|
$ 4.47 | |||||
| 11 | 140123717062 | Air Tower, Assembly, Complete |
|
$ 137.43 | |||||
| 15 | 5304522314 | Bulb, Light, E17/12 Led |
|
Immediately | $ 40.19 | ||||
| 16 | 5304530650 | Socket, Light, Led |
|
Immediately | $ 10.01 | ||||
| 17 | 5304536791 | Lens, Light |
|
- | |||||
| 18 | 5304523758 | Knob, Temp Control |
|
Immediately | $ 7.96 | ||||
| 21 | 5304523788 | Harness Assembly, Temp/defrost, W/thermostats (Replaces: 5304521790) |
|
Immediately | $ 38.56 | ||||
| 23 | 5304537471 | Hinge, Upper |
|
$ 5.27 | |||||
| 25 | 5304529045 | Hinge-bottom, Assembly, Rh, W/foot-closer |
|
$ 45.55 | |||||
| 26 | 5304523747 | Hinge-bottom, Assembly, Lh Non Hinged, W/foot |
|
$ 41.21 | |||||
| 29 | 5304525858 | Cover, Access, Machine Compt. |
|
$ 55.67 | |||||
| 32 | 5304532168 | Cover Assembly, Evaporator, W/cold Control |
|
$ 79.38 | |||||
| 36 | 5304530010 | Cover, Upper Hinge, White |
|
Immediately | $ 6.95 | ||||
| 37 | 5304523313 | Label, Blank, White, Hole Cover |
|
Immediately | $ 3.55 | ||||
| 42 | 5304537120 | Shelf, Sliding, U20, Fw Wire |
|
Immediately | $ 79.73 | ||||
| 43 | 5304537472 | Basket, Gray, Lower |
|
Immediately | $ 36.47 | ||||
| 44 | 5304523785 | Cover, Light Guide |
|
Immediately | $ 8.94 | ||||
| 45 | 5304523755 | Reed Switch Harness, Assembly, W/led Light |
|
Immediately | $ 75.19 | ||||
| 50 | 5304523789 | Harness, Potentionmeter |
|
Immediately | $ 22.29 | ||||
| 11A | 140213829033 | Fan Asseembly, Motor, Evaporator |
|
Immediately | $ 49.81 | ||||
| 11B | 5304523722 | Mount-fan, Evaporator |
|
Immediately | $ 18.79 | ||||
| 42A | 5304537123 | Shelf, Wire, Gray, Lower |
|
Immediately | $ 73.18 | ||||
| 50A | 5304523738 | Screw, Hex Wash Hd, M4.2 X 16 |
|
$ 6.51 | |||||
| NI | 30534600 | Clip, Plastic, W/adhesive |
|
$ 3.79 | |||||
| NI | 5304534034 | Screw, Type Ab, #10-16 |
|
- | |||||
| NIA | 5304530289 | Cover, Eps, Potentiometer |
|
- | |||||
| NIA | 241500305 | Screw, Hex Hd, #8-18 X 5/8 |
|
$ 3.03 |
