01 - Cover Sheet

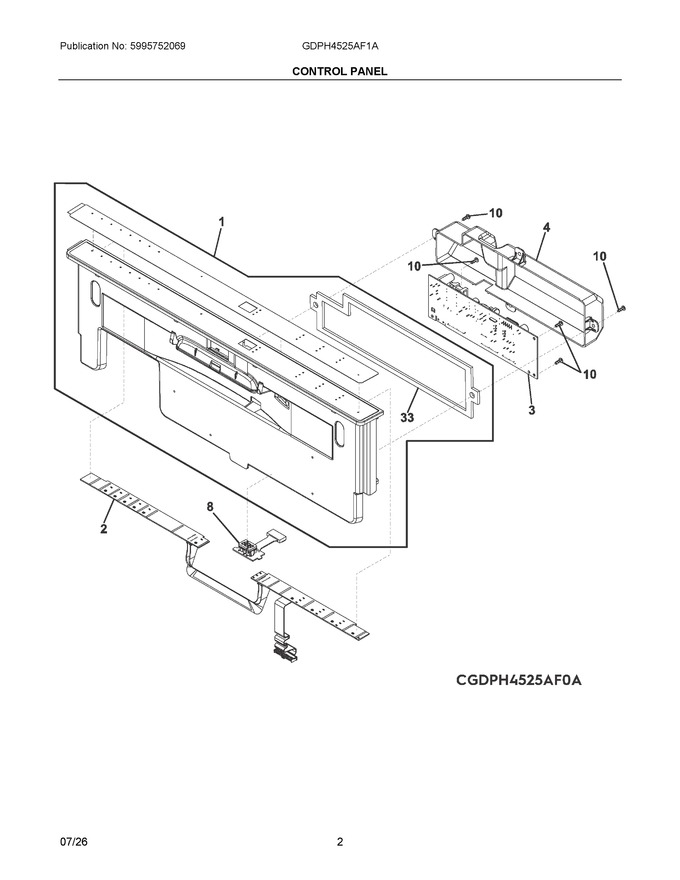

02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304537674 | Condole Assembly, W/overlay, Black, & Cover Gasket |
|
Immediately | $ 53.88 | ||||
| 2 | 5304532974 | Switch Assembly, Tactile |
|
Immediately | $ 88.78 | ||||
| 3 | 140263281069 | Main Control Board, Pcb (Replaces: 140263281044) |
|
$ 119.15 | |||||
| 4 | 5304517614 | Cover, Control |
|
$ 20.24 | |||||
| 8 | 5304532971 | Display Board, Pcb |
|
Immediately | $ 80.96 | ||||
| 10 | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 9.22 | |||||
| 33 | 154478901 | Gasket, Cover |
|
$ 61.66 | |||||
| NI | 5304537677 | Harness, Wiring, Main |
|
- |
