Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3205898 Backsheet Appelez-nous -
3 131205100 Screw In-Stock Immediately $ 14.18

4 131225200 Timer Appelez-nous -
5 131048000 Switch, Start Appelez-nous -
7 131111500 Pushbutton Special Order $ 13.55

8 5303291352 End Cap-rh Special Order $ 56.49

9 3205821 Spring Catch In-Stock Immediately $ 35.44

11 218359202 Screw   (Replaces: 5303283289) Special Order $ 10.63

15 131297306 Bracket-controls Appelez-nous -
17 5303291344 End Cap-lh Special Order $ 59.59

18 5303289526 Screw Appelez-nous -
20 131197000 Clip Special Order $ 13.62

21 131243800 Screw Special Order $ 10.46

23 5303297893 Knob-timer Special Order $ 43.73

25 131306600 Panel - Control Appelez-nous -
26 131297400 Harness Appelez-nous -
28 131130402 Panel, Top, White Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

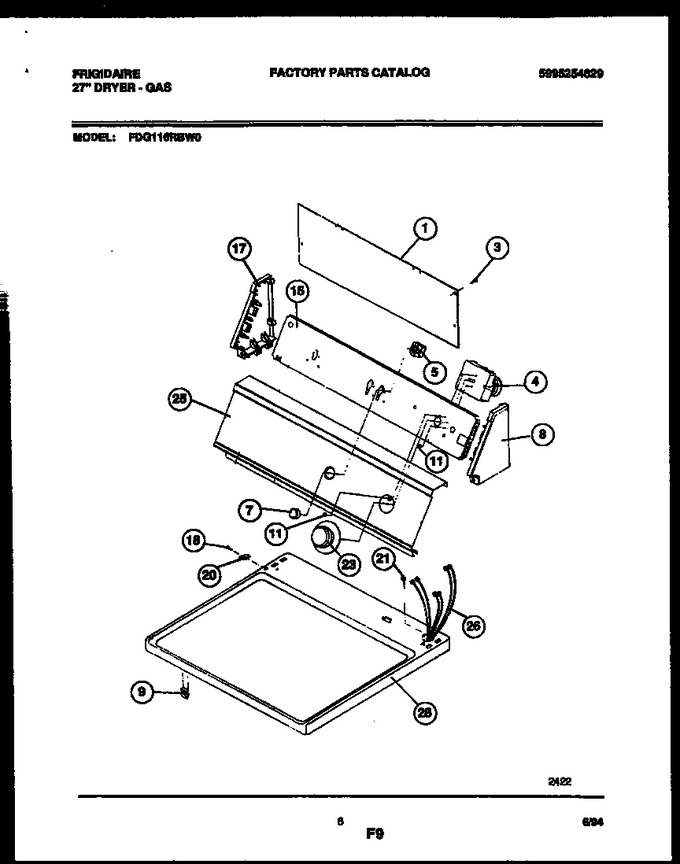

Diagram for FDG116RBW0
