01 - Cover Sheet


02 - Control Panel


03 - Main Top/surface Units


04 - Wiring Diagram

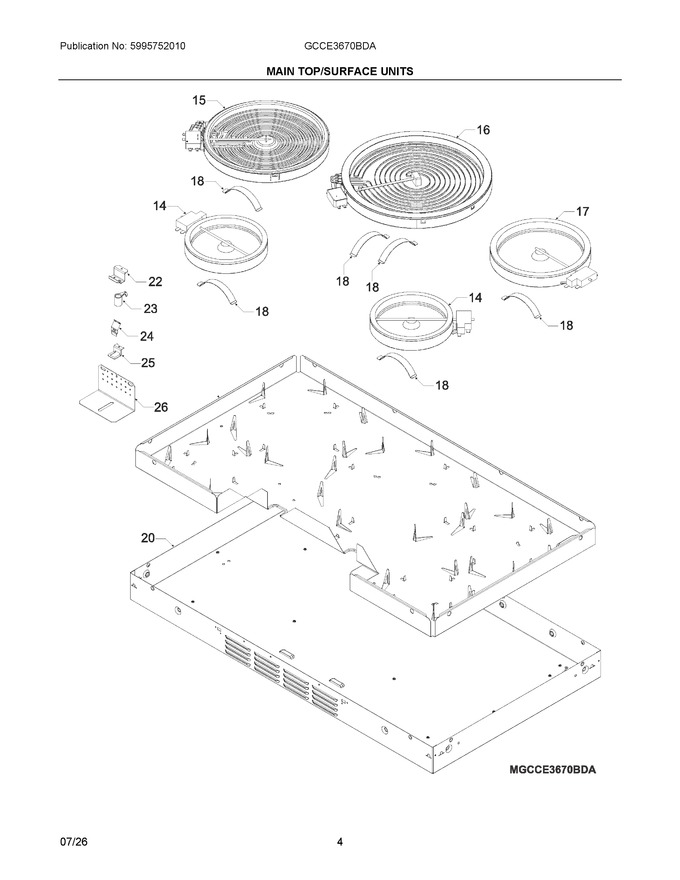

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	140283001026		Element, Radiant, 140mm, 1200w			Immediately	$ 73.17
16	8583181989549		Heating Element, 1800w		Appelez-nous	-
17	8583740636383		Heating Element, 1800w, 240v			Immediately	$ 117.78
18	387372900		Spring, Surface Element				$ 15.17
20	5304534173		Box, Burner, Outer, 36			Immediately	$ 137.21
22	5304518258		Bracket, Support, Z Style		Appelez-nous	-
24	387174602		Bracket, Spring, Cooktop Mtg.				$ 5.67
25	387683300		Bracket, Surface Element			Immediately	$ 13.42
26	5304538915		Bracket, Retainer, Maintop			Immediately	$ 5.41
15A	8583165300028		Element, Surface, 9", 3200w, Turbo Boil				$ 89.90
NI	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NI	8587320115205		Screw, 8-18x5		Appelez-nous	-
NI	5304534175		Harness, Wiring, Main		Appelez-nous	-
NI	305309608		Screw, M4		Appelez-nous	-
NI	305338602		Screw		Appelez-nous	-
NI	202855101		Holder, Cable				$ 1.42
NIA	305376101		Screw, Bracket, Surface Element		Appelez-nous	-
NIA	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.36
