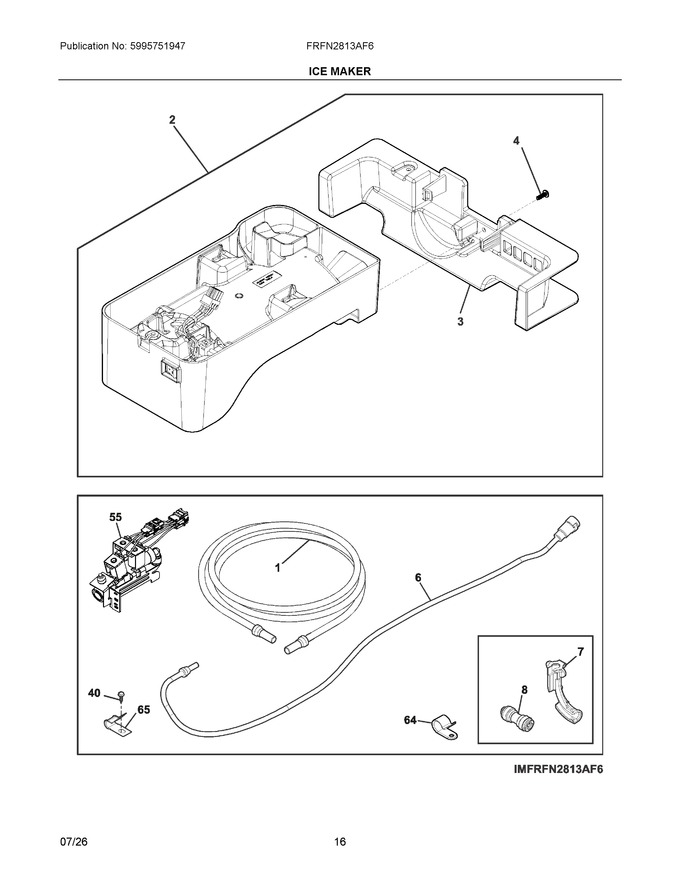

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976443 | Tube, Water, 23.62", Yellow, Valve, To Door |
|
Immediately | $ 14.41 | ||||
| 2 | 5304531314 | Ice Maker, Freezer, Twist Tray |
|
- | |||||
| 3 | 5304531313 | Bracket, Ice Maker Block, White, Freezer |
|
$ 81.95 | |||||
| 4 | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| 6 | 5304535843 | Tube Assembly, Click Connex, Blue, Female |
|
Immediately | $ 10.77 | ||||
| 7 | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| 8 | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| 40 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 55 | 140137975102 | Valve, Water, Triple, Solenoid |
|
Immediately | $ 89.73 | ||||
| 64 | 240396801 | Clamp, Tube/wiring, 1/2", Nylon, Black/natural |
|
$ 19.13 | |||||
| 65 | 5304455846 | Clamp-cable |
|
$ 10.63 | |||||
| NI | 241500305 | Screw, Hex Head, #8-18x5/8 (Replaces: 241853202) |
|
$ 3.03 | |||||
| NI | 218515401 | Clip, Grille/tube, & Hinge |
|
$ 17.72 | |||||
| NI | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 6.38 | |||||
| NI | 5304535774 | Nut, Click Connex, Male |
|
$ 2.33 | |||||
| NIA | 240363602 | Screw-shoulder |
|
$ 13.65 | |||||
| NIA | 5304535846 | Fill Tube, Assembly, Click Connex |
|
$ 14.46 |
