01 - Cover Sheet

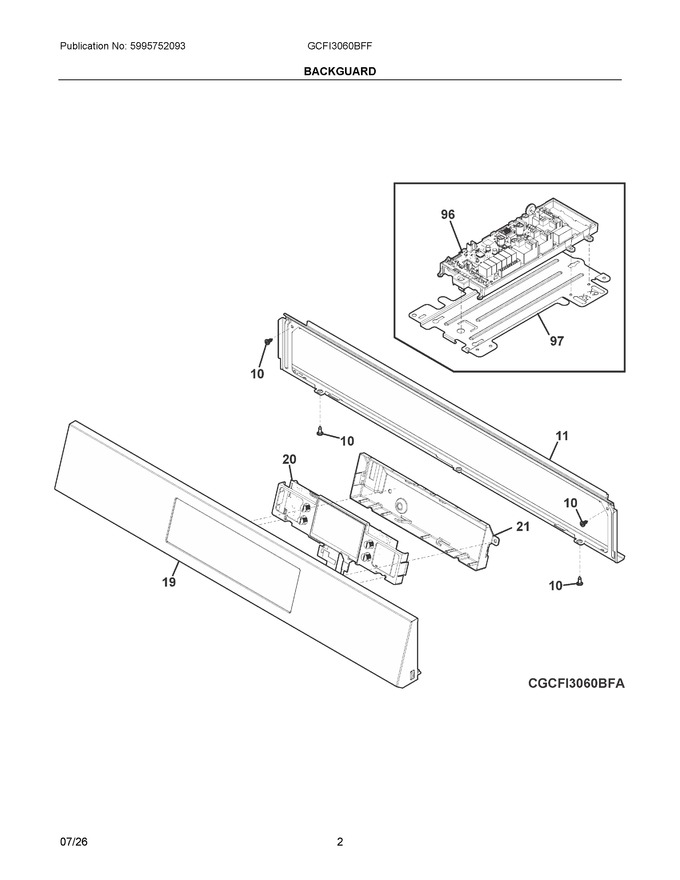

02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 5304526232 | Screw, T-20 St, 8-24 X 3/8 |
|
- | |||||
| 11 | 5304528295 | Bracket, Support, Front Control |
|
Immediately | $ 25.33 | ||||
| 12 | 5304528554 | Seal, Smoothtop |
|
Immediately | $ 31.86 | ||||
| 19 | 5304538321 | Control Panel, Assembly, Stainless (Replaces: 5304537559) |
|
Immediately | $ 126.86 | ||||
| 21 | 5304533954 | Housing, Control |
|
- | |||||
| 96 | 140171068053 | Pc Board, Ovc Relay |
|
Immediately | $ 126.93 | ||||
| 97 | 5304528373 | Bracket, Ovc Board |
|
Immediately | $ 22.13 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 5304529016 | Harness, Wiring, Macs Panel, To Ui Board |
|
$ 23.16 | |||||
| NI | 5304526533 | Screw, T15, 8-18 1/2, Black |
|
$ 2.32 | |||||
| NI | 5304536410 | Standoff, Harness Clamp |
|
Immediately | $ 2.29 | ||||
| NI | 349479702 | Screw, Pt T20, 4 X 10, Black |
|
$ 2.29 | |||||
| NIA | 5304528293 | Screw, T20, 8-18 X .79 |
|
- |
