SELECT A DIAGRAM

01 - Cover Sheet

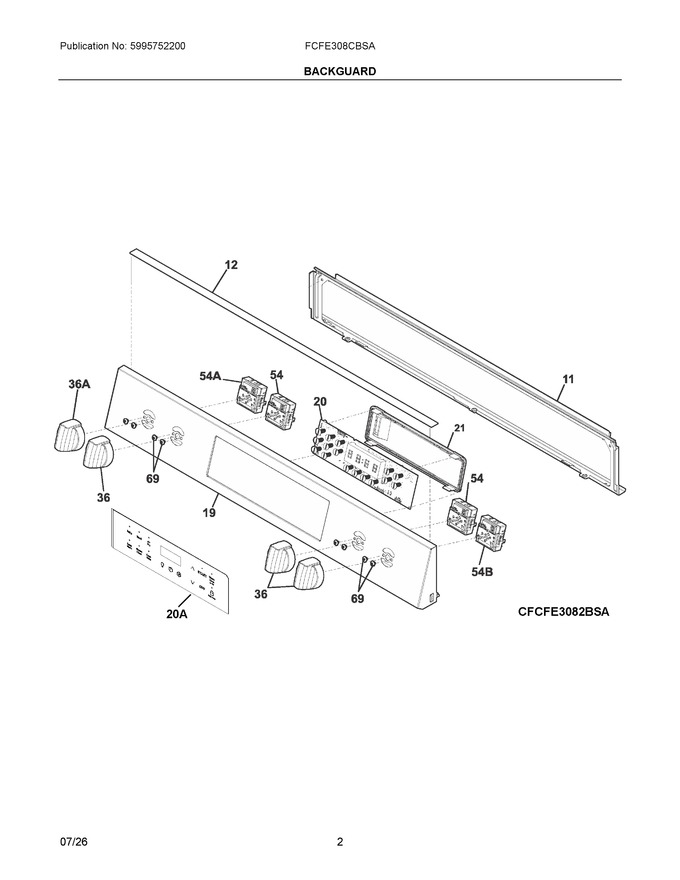

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5304528295		Bracket, Support, Front Control			Immediately	$ 25.33
14	5304528554		Seal, Smoothtop			Immediately	$ 31.86
19	140199546494		Control Panel, Assembly, Stainless		Appelez-nous	-
20	140284300047		Controller, Eoc, Ui330				$ 128.30
21	140296620010		Cover, Controller		Appelez-nous	-
36	5304528072		Knob, Infinite Switch, Stainless, Single			Immediately	$ 39.24
54	5304522966		Switch, Infinite, Single			Immediately	$ 78.11
56	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
69	5304526494		Screw, Truss T-20, 8-32 X 3/16, Switch Mtg.			Immediately	$ 2.32
20A	140252713098		Overlay, Controller		Appelez-nous	-
36A	5304514117		Knob, Infinite Switch, Stainless, Dual			Immediately	$ 48.15
54A	140173679014		Switch, Infinite, Dual			Immediately	$ 33.31
54B	140173680012		Switch, Infinite, Tboil			Immediately	$ 34.36
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.29
NI	140215698204		Wiring Harness, Energy, Regulator		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316089500		Screw, 10-16 X .486				$ 13.46

    View Diagram in Separate Window       Print Part List
