SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

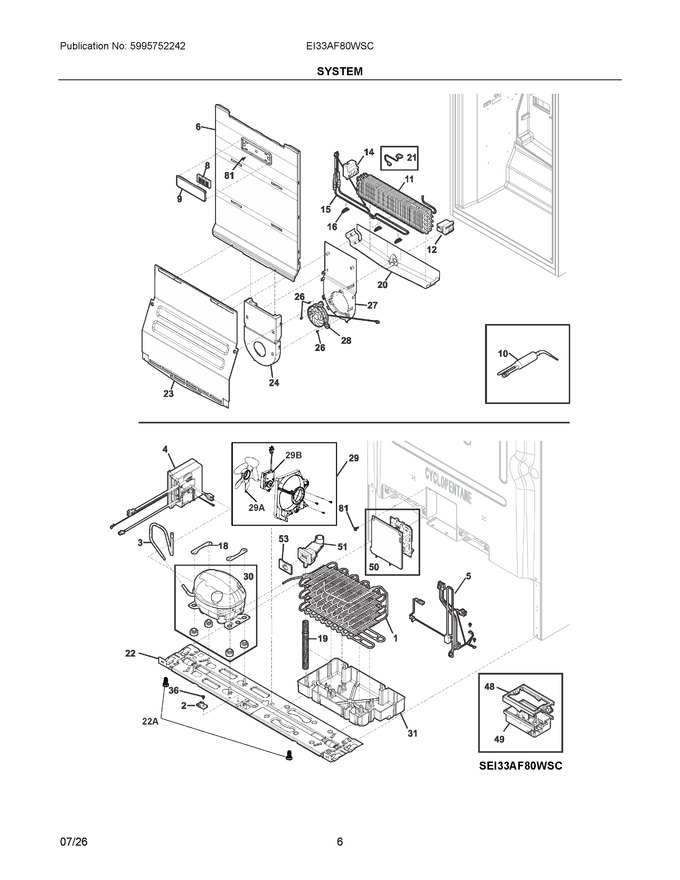

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304530007		Condenser, Dynamic			Immediately	$ 87.62
2	5304454459		Clamp, Cable		Appelez-nous	-
3	5304519693		Tube, Suction Jumper				$ 31.10
4	140231161088		Inverter, Flexdrive				$ 127.89
5	5304532290		Harness, Wiring, Machine Compt.			Immediately	$ 61.27
6	140208214027		Air Duct, Assembly, Upper		Appelez-nous	-
8	PAULTRA2		Air Filter, Pure Air, Ultra, Ultra 2			Immediately	$ 42.18
9	5304524696		Cover, Air Filter, Electrolux				$ 67.30
10	A19676501		Dryer Assembly, Filter   (Replaces: 5304522277)			Immediately	$ 99.73
11	5304523830		Evaporator, Coil			Immediately	$ 143.67
12	5304524954		Support, Evaporator, Rh				$ 8.68
14	5304523832		Support, Evaporator, Lh			Immediately	$ 3.62
15	5304524953		Heater, Defrost			Immediately	$ 165.56
16	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82
18	5304524607		Clamp, Compressor				$ 2.89
19	5304525042		Tube, Drain, Extension			Immediately	$ 9.86
20	5304524755		Trough, Drain, Evaporator				$ 51.34
21	5304524828		Harness Assembly, Defrost Ntc			Immediately	$ 36.86
22	5304524791		Base Assembly, Compressor, W/leg Levelers				$ 117.85
23	5304524720		Cover Assembly, Evaporator, Grey				$ 98.89
24	5304528048		Cover Assembly, Evap Fan, W/air Duct			Immediately	$ 71.48
26	240569202		Screw, 8-18 X .500				$ 2.12
27	5304524782		Bracket, Fan Mounting			Immediately	$ 23.86
28	140213829033		Motor-fan, Radial, Evaporator   (Replaces: 5304539146)			Immediately	$ 49.81
29	5304535399		Condenser Fan, Assembly, 29 #, W/shroud				$ 94.28
30	140287305118		Compressor, Assembly, 115v, W/inverter				$ 190.14
31	5304519674		Pan, Drain				$ 39.47
36	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17
48	5304524865		Frame, Power Supply				$ 21.69
49	5304524866		Pc Board, Assembly, Power Supply, W/housing			Immediately	$ 247.99
50	140163200276		Configured Electronic, Assembly, W/housing		Appelez-nous	-
51	5304530111		Drain Jumper, Assembly, W/seal				$ 19.52
53	5304525744		Cover, Drain Jumper				$ 9.68
81	5304519765		Screw, Hx Wash Hd, M4.2 X 12			Immediately	$ 3.03
22A	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
29A	8582416395027		Blade, Condenser Fan		Appelez-nous	-
29B	5304539496		Motor, Condenser Fan   (Replaces: 5304531260)				$ 56.33
NI	5304523302		Clip, Wiring Harness, Plastic, W/adhesive		Appelez-nous	-
NI	5304524651		Screw, Hex Wsh Hd, M4.2 X 16, Grey		Appelez-nous	-
NI	241500305		Screw, Hex Hd, #8-18 X 5/8				$ 3.03
NI	30534600		Clip, Plastic, W/adhesive				$ 3.79

    View Diagram in Separate Window       Print Part List
