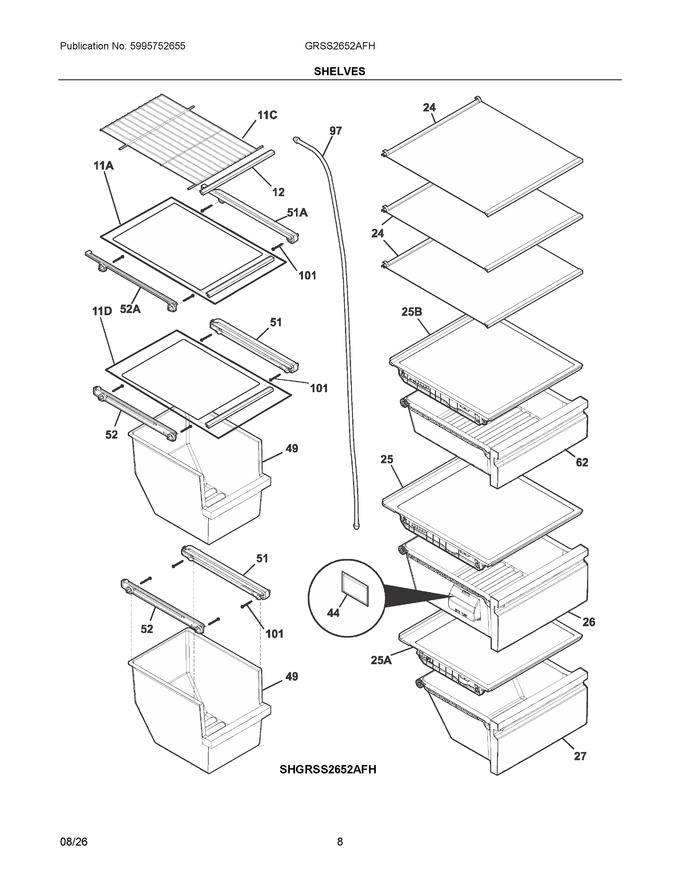

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5304527116		Trim, Wire Shelf, Metalic, Freezer, Front		Appelez-nous	-
24	140279024529		Glass Shelf, Assembly, Refrigerator		Appelez-nous	-
25	140116194154		Crisper Cover, Assembly, Glass, Upper, W/trim-gasket   (Replaces: 5304526918)		Appelez-nous	-
26	5304526927		Crisper Pan, Upper Assy, W/rollers, Trim				$ 221.84
27	5304526928		Crisper Pan, Lower Assy, W/rollers, Trim				$ 212.93
44	FRPAPKRF		Absorber, Ethylene			Immediately	$ 15.60
49	5304536366		Bucket, Ice, Freezer   (Replaces: 5304535016)				$ 92.78
51	240343002		Hanger-basket, Rh				$ 65.22
52	240343102		Hanger-basket, Lh				$ 69.77
62	5304526929		Deli Pan, Assembly, W/rollers, Trim				$ 201.93
97	242220119		Tube, Water, 97.5", Natural, Ilter, Secondary Valve			Immediately	$ 30.47
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 13.46
11A	140279024545		Glass Shelf, Assembly, Upper Freezer, W/ Front Trim		Appelez-nous	-
11C	809078301		Shelf, Pizza		Appelez-nous	-
11D	140279024537		Glass Shelf, Assembly, Lower Freezer, W/ Front Trim		Appelez-nous	-
25A	5304526919		Crisper Cover, Assembly, Glass, Lower, W/trim-gasket				$ 36.92
25B	5304526920		Deli Cover, Assembly, Glass, W/trim-gasket				$ 33.07
51A	140287167013		Rail, Upper Freezer, Glass Shelf, Right		Appelez-nous	-
52A	140287168011		Rail, Upper, Freezer, Lh		Appelez-nous	-
NI	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
NI	5304508016		Roller, Crisper Pan			Immediately	$ 9.42
NIA	241806601		Connector, Water Tube, 5/16 To 5/16, Straight   (Replaces: 242103001)			Immediately	$ 70.56
NIB	242200102		Clip, Tubing, 90 Deg Elbow				$ 10.63
