View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

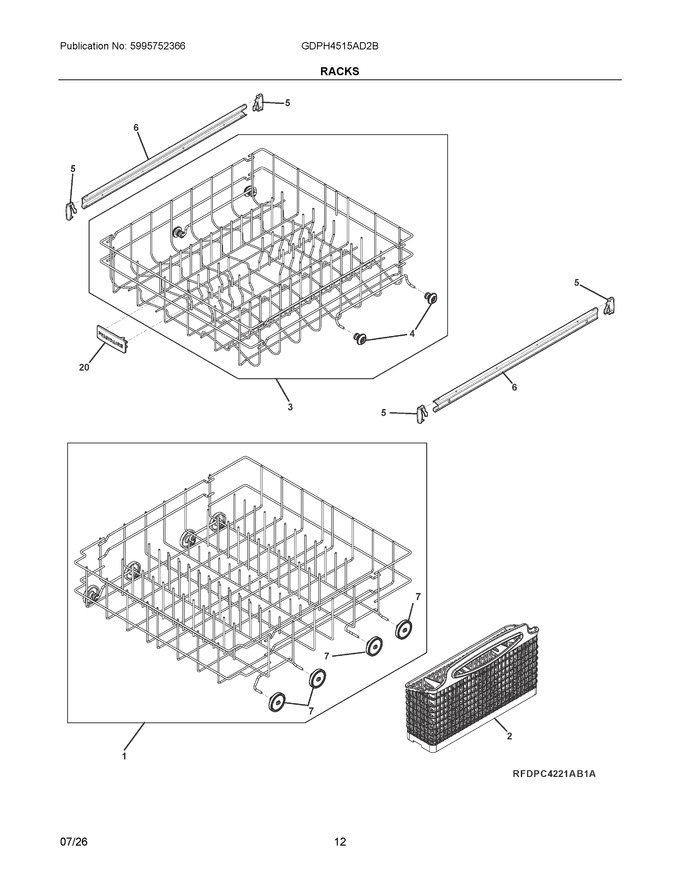

| 1 | 5304535647 | Rack Assembly, Lower |
|
$ 128.25 | |||||
| 2 | 5304535382 | Basket Assembly, Silverware, Earl Gray, W/3 Lids (Replaces: 5304532213) |
|
Immediately | $ 25.43 | ||||
| 3 | 140229954122 | Rack Assembly, Upper |
|
- | |||||
| 4 | 5304535381 | Wheel & Bushing, Assembly, Midnight Ink |
|
Immediately | $ 10.05 | ||||
| 5 | 5304532200 | Cap, Rack Slide, Midnight Ink |
|
Immediately | $ 4.43 | ||||
| 6 | 5304532271 | Slide, Rack, Upper |
|
$ 50.42 | |||||
| 7 | 5304532229 | Wheel & Bushing Assy, Midnight Ink, Lower Rack |
|
Immediately | $ 12.75 | ||||
| 20 | 5304532251 | Nameplate, Upper Rack, Midnight Ink |
|
- | |||||
| NI | 5304534218 | Bushing, Roller, Upper Rack |
|
Immediately | $ 0.61 | ||||
| NI | 140056809035 | Lid, Side |
|
- | |||||
| NI | 140056808029 | Basket Assembly, Silverware, Midnight Ink |
|
- |
