View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

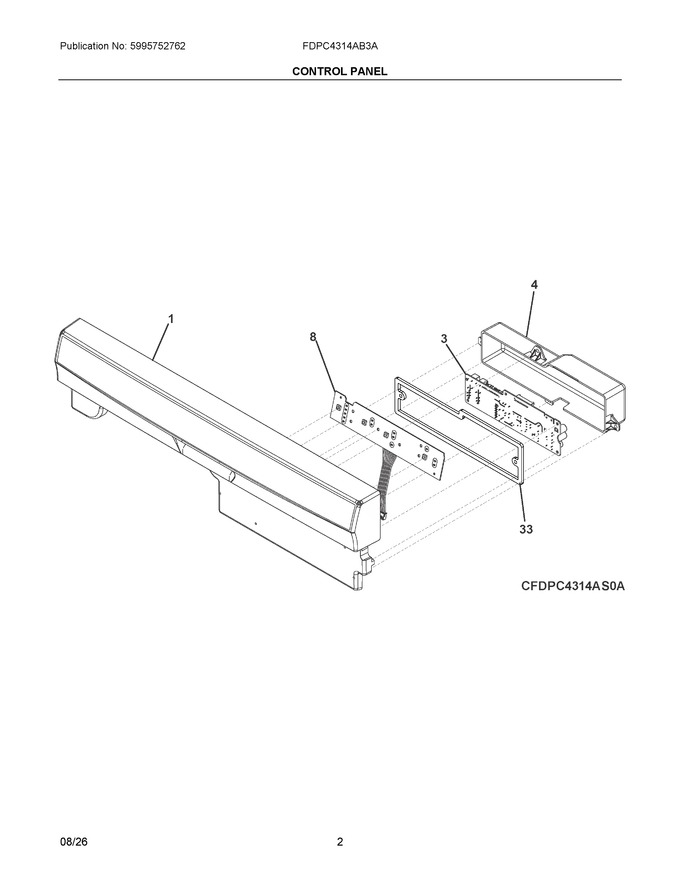

02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304535817 | Console Assembly, Black, W/overlay |
|
- | |||||
| 3 | 140217719099 | Pc Board, Main Control |
|
Immediately | $ 81.44 | ||||
| 4 | 5304535650 | Cover, Control Board, Main |
|
Immediately | $ 11.52 | ||||
| 8 | 5304535554 | Pc Board, User Interface |
|
$ 30.38 | |||||
| 33 | 5304506894 | Gasket, Control Cover |
|
$ 14.59 | |||||
| NI | 5304535649 | Harness, Wiring, Main |
|
Immediately | $ 95.48 | ||||
| NI | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 9.22 |
