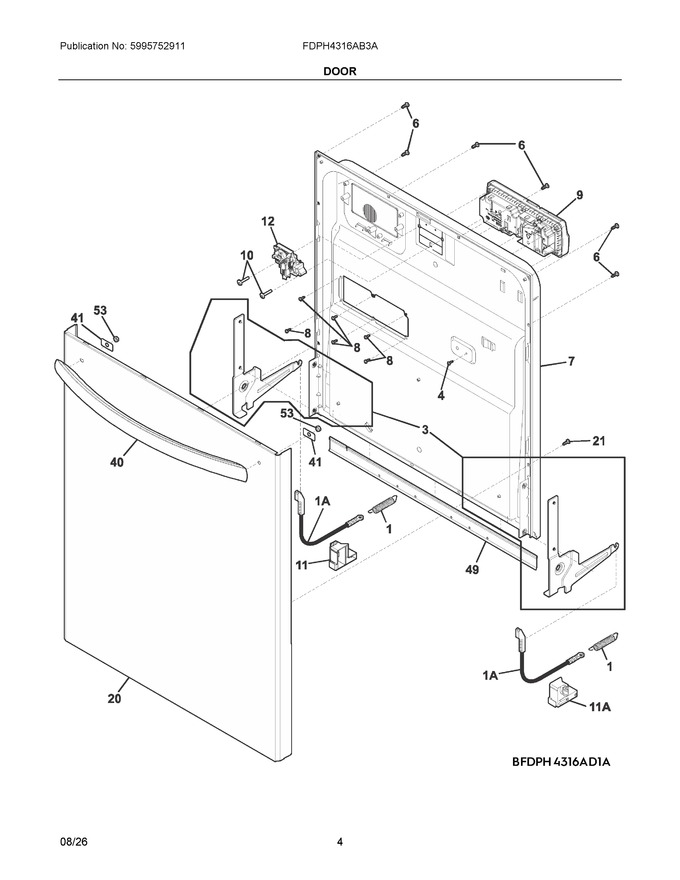

03 - Door


04 - Tub


05 - Motor & Pump


06 - Frame


07 - Racks


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154430501		Spring, Door, (2)			Immediately	$ 36.31
3	5304513274		Counterbalance Arm, Kit, Lh & Rh, W/screws-nuts			Immediately	$ 66.56
4	808326801		Screw, Hex Hd, 8-18 X .4, W/washer   (Replaces: 154825401)				$ 2.84
6	154783102		Screw, Plt, 8-10, Dark Finish		Appelez-nous	-
7	140119106031		Liner Assembly, Inner Door			Immediately	$ 62.29
8	154294701		Screw, #7 Plas .375, (6), Disp. Assy.				$ 9.22
9	5304532199		Dispenser, Det/rinse Aid, W/level Ind.				$ 65.18
10	154103702		Screw, Latch Mtg, (2)				$ 13.46
11	5304519910		Sleeve, Brake, Lh, C-arm				$ 37.59
12	140259553018		Latch Assembly, Door			Immediately	$ 23.27
20	807278508		Door Assembly, Outer, Black, W/insulation		Appelez-nous	-
21	154754702		Screw, Truss Hd, 8-18 Type Ab, Dark Finish				$ 5.60
40	5304521172		Handle, Door, Black		Appelez-nous	-
41	154603401		Plate, Handle Support, (2)			Immediately	$ 16.30
49	5304532198		Gasket, Door Wiper, Black, Bottom			Immediately	$ 9.06
53	154425001		Nut, Keps, (2), Handle Mtg.				$ 9.93
11A	5304519911		Sleeve, Brake, Rh, C-arm				$ 36.87
1A	154325201		Linkage, Door Spring, (2)			Immediately	$ 27.27
NI	5304538695		Insulation, Door		Appelez-nous	-
NI	154686401		Bearing, Hinge Pin				$ 10.63
NI	154647101		Hinge Pin, Arm Assy				$ 14.18
NI	154241101		Retainer, Thermostat				$ 3.62
NI	154783101		Screw, Plt, 8-10			Immediately	$ 7.09
NIA	5304525214		Shield, Dispenser Assy			Immediately	$ 10.13
