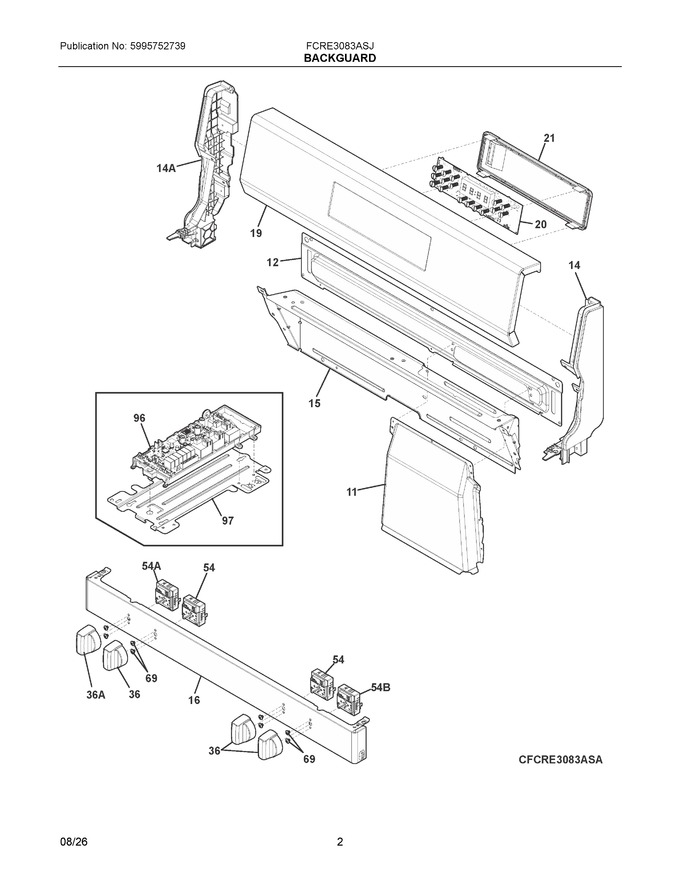

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5304528376		Duct, Upper Exhaust, Black				$ 50.56
12	140197485026		Deflector, Duct Diffuser		Appelez-nous	-
14	140283307068		Cap, Control Panel, Black, Rh			Immediately	$ 32.99
15	140270581022		Shield, Inner, Backguard		Appelez-nous	-
16	5304528476		Manifold Panel, Stainless				$ 142.29
19	5304528251		Control Panel, Assembly, Glass/steel, Stainless				$ 135.99
20	5304538859		Control-eoc Ui415 E Sc Rcfs				$ 125.16
21	5304534688		Cover, Control				$ 29.28
36	5304528072		Knob, Infinite Switch, Stainless, Single			Immediately	$ 39.24
54	5304522966		Switch, Infinite, Single			Immediately	$ 78.11
56	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
69	5304526494		Screw, Truss T-20, 8-32 X 3/16, Switch Mtg.			Immediately	$ 2.32
96	140171068053		Pc Board, Ovc Relay			Immediately	$ 126.93
97	5304528372		Bracket, Ovc Board				$ 11.68
14A	140283307050		Cap, Control Panel, Black, Lh			Immediately	$ 31.28
36A	5304514117		Knob, Infinite Switch, Stainless, Dual			Immediately	$ 48.15
54A	140173679014		Switch, Infinite, Dual			Immediately	$ 33.31
54B	140173680012		Switch, Infinite, Tboil			Immediately	$ 34.36
97A	140280237011		Housing, Ovc Board		Appelez-nous	-
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.29
NI	5304536350		Harness-energy Regulator 5s			Immediately	$ 117.95
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NI	5304535309		Harness, Wiring, Macs Panel To, User Interface				$ 19.54
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
