Diagram for 02 - Cabinet And Component Parts
02 - Cabinet And Component Parts

Diagram for 03 - Door Parts
03 - Door Parts

Diagram for 04 - Console And Control Parts
04 - Console And Control Parts

Diagram for 05 - Blower And Drive Parts
05 - Blower And Drive Parts

Diagram for 06 - Burner, Igniter And Valve
06 - Burner, Igniter And Valve


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 131141701 Backsheet Appelez-nous -
3 131205100 Screw In-Stock Immediately $ 14.18

4 131225400 Timer Appelez-nous -
5 131048000 Switch, Start Appelez-nous -
7 131141301 Pushbutton Appelez-nous -
8 131122701 End Cap-r.h. Special Order $ 53.29

9 3205821 Spring Catch In-Stock Immediately $ 35.44

11 218359202 Screw   (Replaces: 5303283289) Special Order $ 10.63

15 131297306 Bracket-controls Appelez-nous -
17 131122711 End Cap-l.h. Special Order $ 58.38

18 5303289526 Screw Appelez-nous -
20 131197000 Clip Special Order $ 13.62

21 131243800 Screw Special Order $ 10.46

23 134011703 Knob-timer   (Replaces: 131141001) In-Stock Immediately $ 58.56

25 131279900 Panel-control Appelez-nous -
26 131256400 Harness Appelez-nous -
28 131130402 Panel-top Appelez-nous -
30 131122601 Cover-r.h. Special Order $ 47.20

31 131122611 Cover-l.h. Special Order $ 42.21


    View Diagram in Separate Window     Print Icon   Print Part List

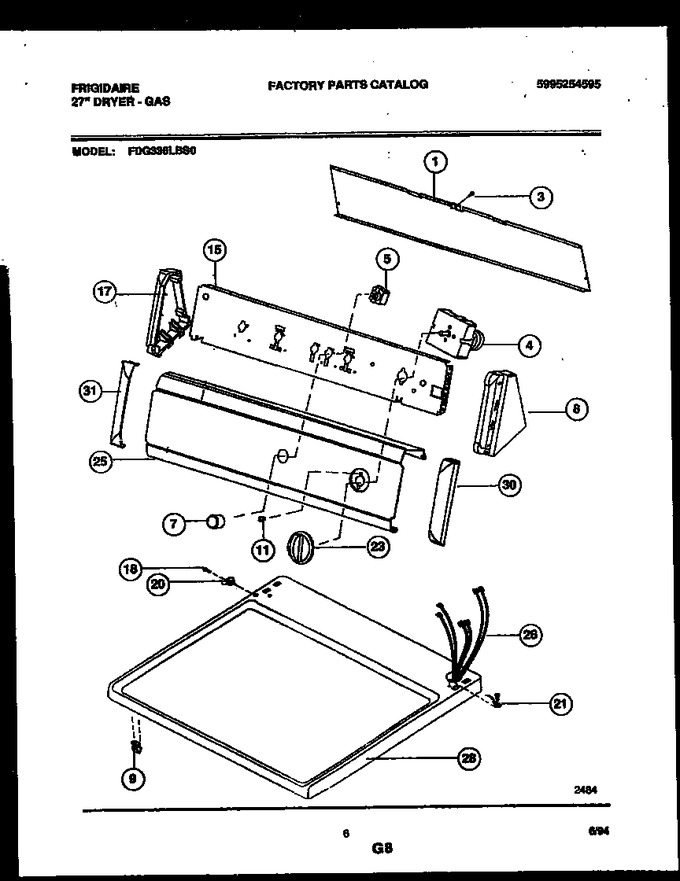

Diagram for FDG336LBS0
