SELECT A DIAGRAM

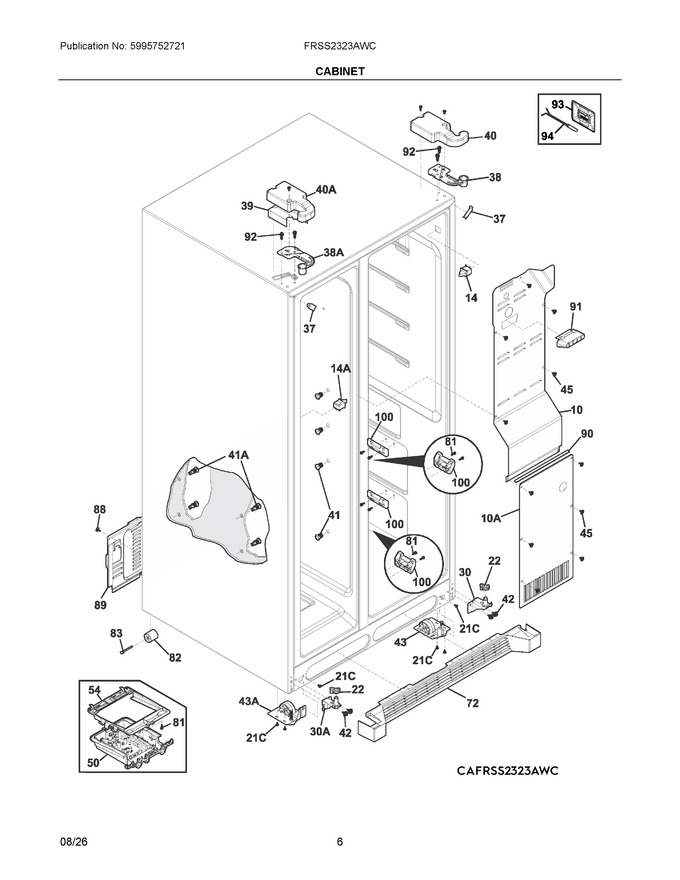

01 - Cover Sheet


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	240435911		Cover-air Duct				$ 105.44
14	240505805		Switch, Light, White, Refrigerator		Appelez-nous	-
22	5304532163		Plate, Door Closer, White				$ 7.23
30	5304532613		Hinge Assembly, Rh, Lower, W/hinge Pin			Immediately	$ 38.57
37	5304519616		Trim-cabinet Corner, White			Immediately	$ 12.13
38	5304525957		Bracket, Hinge, Rh Upper				$ 100.11
39	5304526087		Shield, Hinge Cover, Lh Upper, Freezer				$ 24.26
40	5304526123		Cover, Hinge, White, Rh Upper		Appelez-nous	-
41	241550701		Grommet-shelf Mtg, .96" Long				$ 18.20
42	240578902		Screw, Hex Head, 1/4-20 X 5/8			Immediately	$ 14.18
43	5304525901		Roller Assembly, Static, Rh, W/leveling Leg				$ 26.54
45	241500303		Screw, Hex Washer Head, 8-18ab X 1/2			Immediately	$ 4.55
50	5304534552		Power Board, Main Control, W/housing				$ 193.66
54	5304536492		Support, Housing, Main Board			Immediately	$ 18.05
72	5304527151		Grille/kickplate, White				$ 120.58
81	218843801		Screw-hex, Hd, #8a X 5/8   (Replaces: 5304453922)				$ 14.41
82	240335202		Roller, Compressor Base, Rear				$ 21.27
83	5304455655		Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin			Immediately	$ 35.34
88	241500305		Screw, Hex Washer Head, 8-18ab X 0.625   (Replaces: 241500304)				$ 3.03
89	5304521676		Cover Assembly, Access, Metal		Appelez-nous	-
90	218249807		Seal-coil Cover		Appelez-nous	-
91	240380101		Duct-ice Maker				$ 75.08
92	241710601		Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg				$ 13.46
93	5304508041		Cover, Thermistor				$ 11.92
100	5304525909		Support, Crisper Cover			Immediately	$ 10.62
10A	241719716		Cover, Coil		Appelez-nous	-
14A	8582405058065		Switch Light, White, Freezer		Appelez-nous	-
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
30A	5304532614		Hinge Assembly, Lh, Lower, W/hinge Pin				$ 35.14
38A	5304525958		Bracket, Hinge, Lh Upper				$ 28.83
40A	5304526124		Cover, Hinge, White, Lh Upper		Appelez-nous	-
41A	241550801		Grommet-shelf Mtg, 1.40" Long				$ 63.70
43A	5304525902		Roller Assembly, Static, Lh, W/leveling Leg				$ 26.54
NI	5303209814		Nut, "u" Type, 8-15a, Fan Mtr Mtg		Appelez-nous	-
NI	240396802		Clamp, Tube/wiring, Nylon, Black/natural		Appelez-nous	-
NI	242157801		Cover, Tubing, Eps Block				$ 23.13
NI	134154100		Screw, Hex Head, #10-32 X 3/8   (Replaces: 242025601)				$ 13.46

    View Diagram in Separate Window       Print Part List
