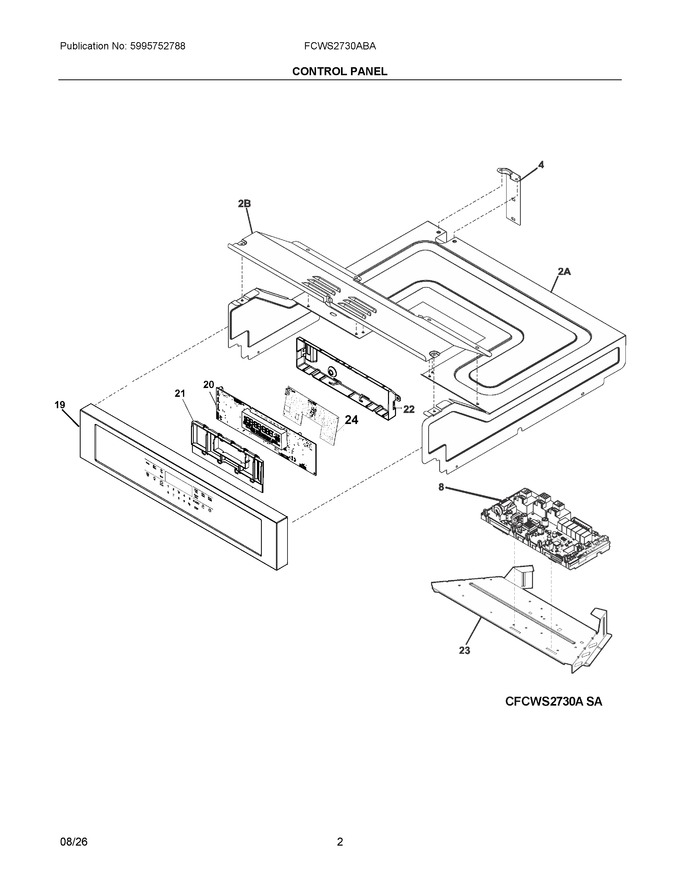

SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Body


04 - Door


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5304532393		Bracket, Conduit		Appelez-nous	-
8	140171068087		Pc Board, Ovc				$ 127.45
19	140206690145		Control Panel, Assembly, Black		Appelez-nous	-
20	140225818149		User Interface, Ui		Appelez-nous	-
21	5304533876		Chassis, Control			Immediately	$ 17.91
22	5304538627		Cover, Control Ui		Appelez-nous	-
23	139028002		Bracket, Mounting				$ 38.37
24	140199403027		Control Board, Hmi Hector				$ 49.37
2A	139003603		Cover, Oven Top				$ 69.99
2B	139003702		Cover, Control Access				$ 27.97
NI	140200603110		Wiring Harness, Hmi Hector, Jumper		Appelez-nous	-
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NI	5304535368		Harness, Conduit Assy., Power Connect   (Replaces: 5304525431)				$ 154.45
