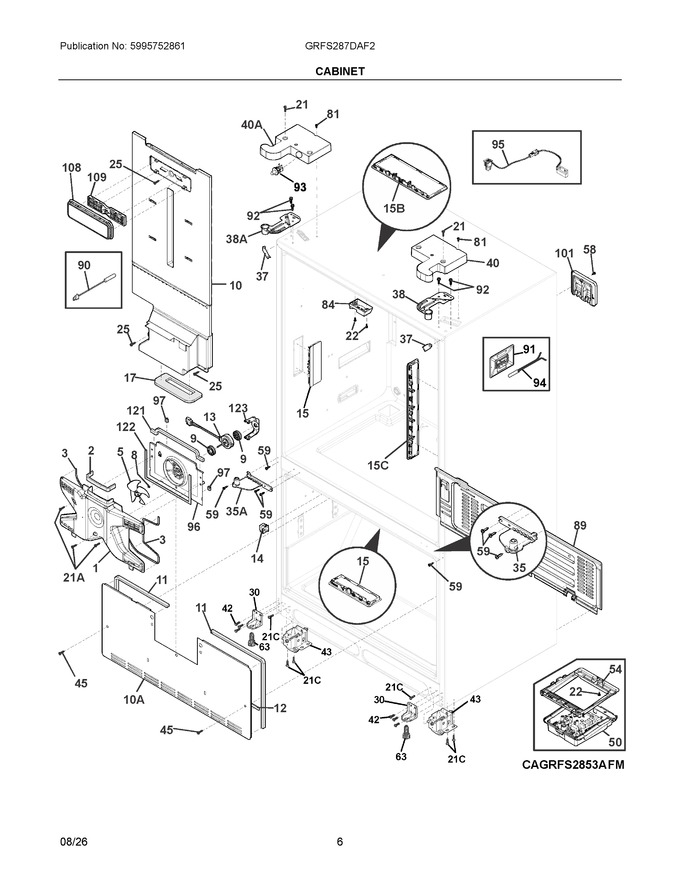

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304538132 | Cover, Evaporator Fan |
|
$ 20.30 | |||||
| 2 | 218249809 | Seal, Fan Cover, Top |
|
Immediately | $ 8.34 | ||||
| 3 | 241860117 | Gasket, Closed Cell, Fan Cover |
|
Immediately | $ 11.21 | ||||
| 5 | 5304532795 | Blade, Evaporator Fan |
|
$ 35.79 | |||||
| 8 | 215474201 | Washer, "slinger", Nylon, Evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 9 | 5304508006 | Bushing, Motor Mounting |
|
$ 12.89 | |||||
| 10 | 5304538917 | Air Tower, Assembly, Complete |
|
$ 141.19 | |||||
| 11 | 241860104 | Gasket-coil Cover |
|
Immediately | $ 29.77 | ||||
| 12 | 241860105 | Gasket-coil Cover |
|
Immediately | $ 17.87 | ||||
| 13 | 140282033103 | Motor, Fan Unit, Evaporator (Replaces: 140282033012) |
|
Immediately | $ 56.30 | ||||
| 14 | 140118119027 | Switch, Light Indicator, White, Door/light |
|
Immediately | $ 4.35 | ||||
| 15 | 5304530711 | Light Assembly, Led, Single, W/lens |
|
Immediately | $ 47.19 | ||||
| 17 | 140150584021 | Gasket, Air Duct, Bottom |
|
Immediately | $ 14.25 | ||||
| 21 | 241732101 | Screw, 10-32 X 1/2 |
|
Immediately | $ 15.60 | ||||
| 22 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 25 | 240383407 | Screw, Truss Hd Quad, #10-16 X .500, White |
|
$ 12.76 | |||||
| 30 | 241778702 | Bracket-anti Tip |
|
$ 20.42 | |||||
| 35 | 5304530887 | Hinge Assembly, Lower, Rh, W/adj Screw |
|
Immediately | $ 37.97 | ||||
| 37 | 5304519618 | Trim-cabinet Corner, Gray |
|
$ 12.13 | |||||
| 38 | 5304530818 | Hinge Bracket, Rh, Upper |
|
$ 27.30 | |||||
| 40 | 5304534834 | Cover, Upper Hinge, Gray, Rh |
|
$ 19.30 | |||||
| 42 | 240578902 | Screw, Hex Head, 1/4-20 X 5/8 |
|
Immediately | $ 14.18 | ||||
| 43 | 5304533552 | Roller Assembly, 30 |
|
Immediately | $ 33.18 | ||||
| 45 | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| 50 | 5304534597 | Main Power Board |
|
$ 200.39 | |||||
| 54 | 5304536492 | Support, Housing, Main Board |
|
Immediately | $ 18.05 | ||||
| 58 | 241500305 | Screw, Hex Head, #8-18x5/8 (Replaces: 241853202) |
|
$ 3.03 | |||||
| 59 | 240442708 | Screw, #10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 63 | 5304533555 | Leveler, Anti-tip |
|
Immediately | $ 6.37 | ||||
| 81 | 134154100 | Screw, Hex Head, #10-32 X 3/8 (Replaces: 242025601) |
|
$ 13.46 | |||||
| 84 | 5304530886 | Guide, Flipper Mullion |
|
$ 147.88 | |||||
| 89 | 140111251033 | Access Cover, Assembly, Metal |
|
- | |||||
| 90 | 240597220 | Sensor, Temperature, 10k, Ntc (Replaces: 240597203) |
|
Immediately | $ 5.16 | ||||
| 91 | 5304508041 | Cover, Thermistor |
|
$ 11.92 | |||||
| 92 | 241710601 | Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg |
|
$ 13.46 | |||||
| 93 | 5304533035 | Switch-light, 93 # |
|
$ 13.82 | |||||
| 94 | 5303918775 | Thermistor Kit, Temperature, Ntc, W/connectors |
|
Immediately | $ 23.74 | ||||
| 95 | 5304531013 | Harness, Wiring, Jumper, W/reed Switch |
|
Immediately | $ 32.62 | ||||
| 96 | 242204604 | Shroud, Assembly, Evap Fan, W/gaskets |
|
Immediately | $ 29.17 | ||||
| 97 | 241860130 | Gasket, Fan Cover Clip, (2) |
|
- | |||||
| 101 | 5304535835 | Cover, Water Tube |
|
$ 6.81 | |||||
| 108 | 140180184057 | Cover, Air-filter, Housing |
|
$ 12.24 | |||||
| 109 | 5304531207 | Air Filter, Assembly |
|
Immediately | $ 37.41 | ||||
| 121 | 241860103 | Gasket-evap, Upper |
|
Immediately | $ 3.73 | ||||
| 122 | 241860117 | Gasket-evap, Bottom (Replaces: 241860102) |
|
Immediately | $ 11.21 | ||||
| 123 | 5304508007 | Bracket, Fan Motor |
|
Immediately | $ 14.41 | ||||
| 10A | 241860404 | Cover, Evaporator Coil, Lower |
|
$ 67.91 | |||||
| 15B | 5304530715 | Light Assembly, Led, Wide Double, W/lens |
|
Immediately | $ 75.83 | ||||
| 15C | 5304530717 | Light Assembly, Led, Triple, W/lens |
|
Immediately | $ 88.46 | ||||
| 21A | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 35A | 5304530888 | Hinge Assembly, Lower, Lh, W/adj Screw |
|
Immediately | $ 48.61 | ||||
| 38A | 5304530819 | Hinge Bracket, Lh, Upper |
|
$ 27.30 | |||||
| 40A | 5304534838 | Cover, Upper Hinge, Gray, Lh |
|
$ 19.30 | |||||
| NI | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 6.38 | |||||
| NI | 242039702 | Screw, Shoulder, #10-16 Type Ab, Lower Slides, W/washer |
|
$ 4.26 | |||||
| NI | 241695906 | Screw, 10-16ab X 0.50 |
|
$ 19.13 | |||||
| NI | 218515401 | Clip, Grille/tube, & Hinge |
|
$ 17.72 | |||||
| NI | 5304532559 | Switch, Reed, Door (Replaces: 5304529184) |
|
$ 19.57 | |||||
| NIA | 5304508776 | Lock Washer, External Tooth, #8 |
|
$ 4.35 | |||||
| NIA | 241842301 | Cap-thermistor |
|
Immediately | $ 34.02 | ||||
| NIA | 241500305 | Screw, Hex Washer Head, 8-18ab X 0.625 (Replaces: 241500304) |
|
$ 3.03 | |||||
| NIA | 5304531189 | Shield, Switch |
|
- |
