SELECT A DIAGRAM
Air Flow Parts
Cabinet And Installation Parts
Control Panel Parts
Door Parts
Interior And Ventilation Parts
Turntable Parts
SELECT A DIAGRAM
New Model Search:

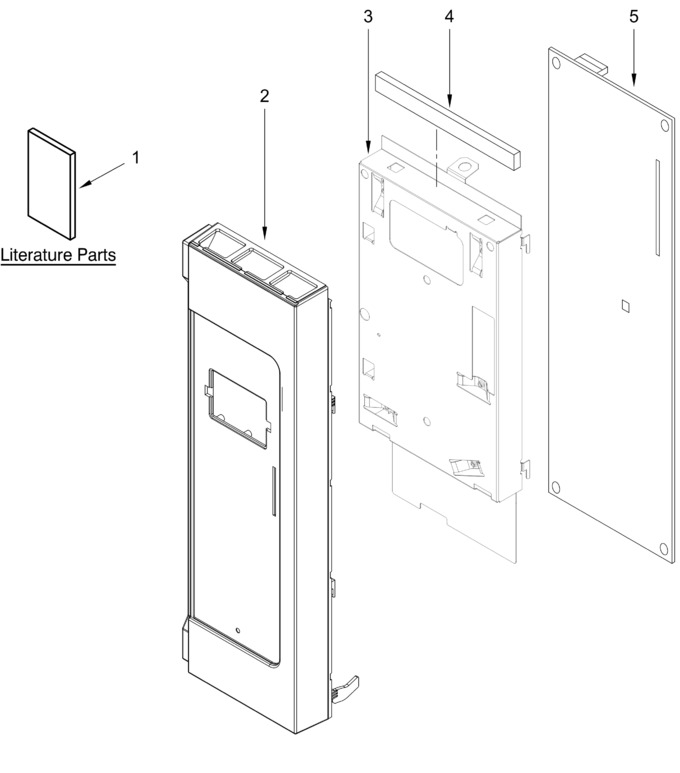

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11252185 | Control Panel Assembly (white) (Replaces: W11247222) |
|
$ 81.86 | |||||
| 3 | W11676791 | Backer, Control (Replaces: W10833365) |
|
$ 48.91 | |||||
| 4 | W11685342 | Seal, Control Panel (Replaces: W11217976) |
|
- | |||||
| 5 | W11774931 | Appliance Control Unit (Replaces: W11227425) |
|
$ 249.49 | |||||
| W11252184 | Control Panel Assembly (black) (Replaces: W11247224) |
|
$ 81.77 | ||||||
| W11175576 | Control Panel Assembly (stainless) (Replaces: W11173817) |
|
Immediately | $ 299.14 | |||||
| W11561749 | Tech Sheet |
|
- | ||||||
| W10918339 | Use And Care Guide |
|
- | ||||||
| W10835579 | Cooking Guide Label |
|
- | ||||||
| W11485888 | Installation Instructions |
|
- |
