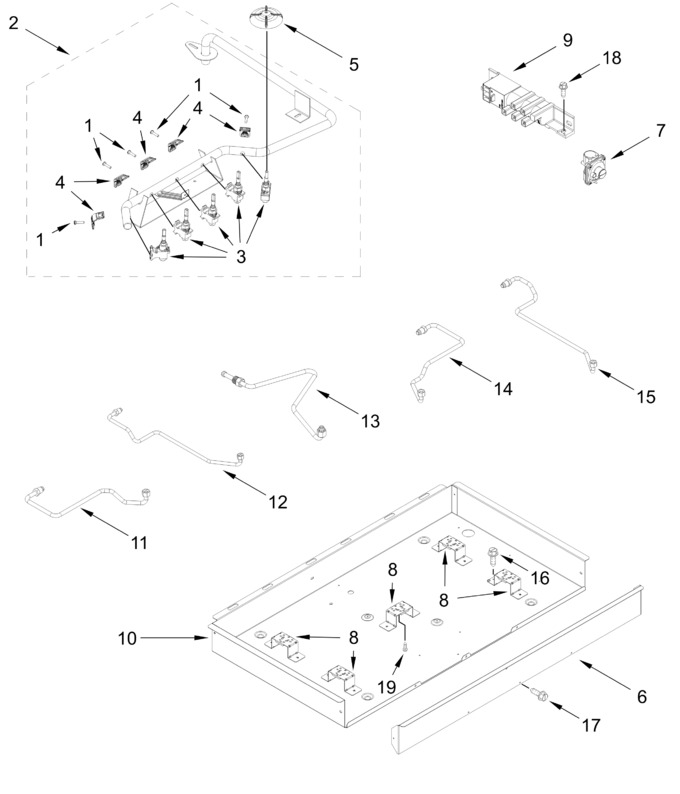

Burner Box, Gas Valves And Switch Parts
Cooktop, Burner And Grate Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8287057 | Screw (Replaces: W10743274) |
|
$ 10.15 | |||||
| 2 | W11706302 | Manifold Assembly (Replaces: W11673571) |
|
- | |||||
| 3 | W11706289 | Valve, Single (Replaces: W11672768) |
|
- | |||||
| 4 | 8287055 | Bracket, Single Valve |
|
$ 65.54 | |||||
| 5 | W11768651 | Seal, Switch Shaft (Replaces: W11721446) |
|
$ 17.40 | |||||
| 6 | W10718141 | Panel, Front (Replaces: W10614951) |
|
- | |||||
| 7 | W11087445 | Regulator, Pressure (Replaces: W10449143) |
|
Immediately | $ 177.34 | ||||
| 8 | W10594429 | Bracket, Orifice Holder |
|
$ 20.00 | |||||
| 9 | W11703692 | Spark Module (Replaces: W11350452) |
|
Immediately | $ 82.85 | ||||
| 10 | W11706295 | Box, Burner (Replaces: W11678089) |
|
- | |||||
| 11 | W10566305 | Tubing, Gas Burner |
|
- | |||||
| 12 | W10566306 | Tubing, Gas Burner |
|
- | |||||
| 13 | W10566302 | Tubing, Gas Burner |
|
- | |||||
| 14 | W10566308 | Tubing, Gas Burner |
|
- | |||||
| 15 | W10566307 | Tubing, Gas Burner |
|
- | |||||
| 16 | W10443110 | Screw |
|
Immediately | $ 13.07 | ||||
| 17 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 18 | 7101P42660 | Screw |
|
- | |||||
| 19 | W11676349 | Screw, Burner Rail (m4) (Replaces: 8286921) |
|
Immediately | $ 12.65 | ||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| W10724598 | Stainless Premium Knob Kit (qty 5) |
|
- | ||||||
| ARI5A21FEE31EB202DDA189D0EC8CA36187 | (left Front, Left Rear) |
|
- | ||||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| ARICCC3114E8E83A0CD6F163B37BA7AE6F1 | Optional Accessory Parts (not Illustrated Or Included) |
|
- | ||||||
| W11706290 | Valve, Single (Replaces: W11672770) |
|
- | ||||||
| W11706291 | Valve, Single (Replaces: W11672771) |
|
- | ||||||
| W11706286 | Valve, Single (Replaces: W11672772) |
|
- | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- |
