New Model Search:

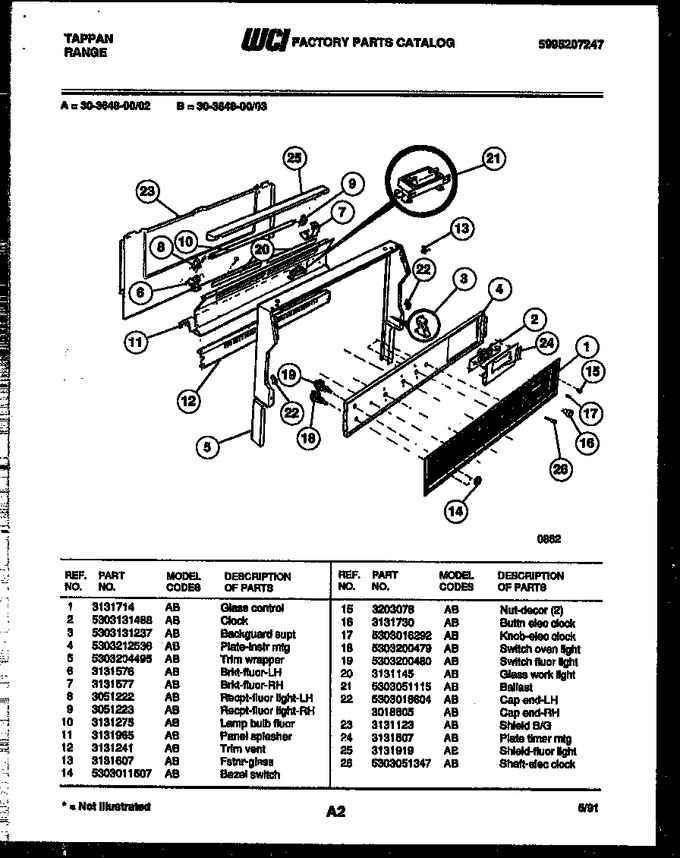

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131714 | Glass Control |
|
- | |||||
| 2 | 5303131488 | Clock |
|
- | |||||
| 3 | 5303131237 | Backguard Supt |
|
- | |||||
| 4 | 5303212536 | Plate - Instr Mtg |
|
- | |||||
| 5 | 5303204495 | Trim-wrapper |
|
- | |||||
| 6 | 3131576 | Brkt-fluor Lh |
|
- | |||||
| 7 | 3131577 | Brkt-fluor Rh |
|
- | |||||
| 8 | 3051222 | Recpt, Fluor Light Lh |
|
- | |||||
| 9 | 3051223 | Recpt, Fluor, Light Rh |
|
- | |||||
| 10 | 3131275 | Lamp Bulb Fluor. |
|
$ 49.40 | |||||
| 11 | 3131965 | Panel, Splasher |
|
- | |||||
| 12 | 3131241 | Trim-vent |
|
- | |||||
| 13 | 3131607 | Fstnr.-glass |
|
- | |||||
| 14 | 5303011507 | Bezel-switch |
|
$ 21.47 | |||||
| 15 | 3203078 | Nut-decor (2) |
|
- | |||||
| 16 | 3131730 | Buttn Elec Clock |
|
- | |||||
| 17 | 5303016292 | Knob-elec Clock |
|
- | |||||
| 18 | 5303200479 | Switch Oven Light |
|
$ 7.04 | |||||
| 19 | 5303200480 | Switch-fluor Light |
|
$ 125.53 | |||||
| 20 | 3131145 | Glass-work Light |
|
- | |||||
| 21 | 5303051115 | Ballast |
|
- | |||||
| 22 | 5303018604 | Cap End-lh |
|
- | |||||
| 23 | 3131123 | Shield B/g |
|
- | |||||
| 24 | 3131507 | Plate - Timer Mtg |
|
- | |||||
| 25 | 3131919 | Shield-fluor Light |
|
- | |||||
| 26 | 5303051347 | Shaft-elec Clock |
|
- | |||||
| 22A | 3018605 | Cap-end Rh |
|
- |
