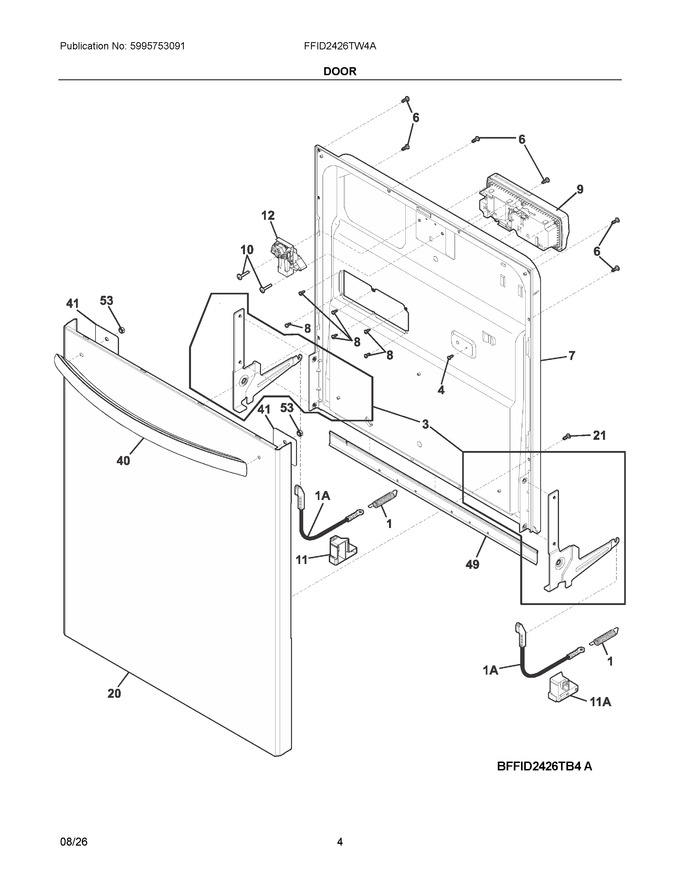

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154430501 | Spring, Door, (2) |
|
Immediately | $ 36.31 | ||||
| 3 | 5304513274 | Counterbalance Arm, Kit, Lh & Rh, W/screws-nuts |
|
Immediately | $ 66.56 | ||||
| 4 | 808326801 | Screw, Hex Hd, 8-18 X .4, W/washer (Replaces: 154825401) |
|
$ 2.84 | |||||
| 6 | 154783101 | Screw, Plt, 8-10 |
|
Immediately | $ 7.09 | ||||
| 7 | 140119106023 | Liner Assembly, Door, W/wiper&reinfor |
|
$ 60.02 | |||||
| 8 | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 9.22 | |||||
| 9 | 5304532199 | Dispenser, Det/rinse Aid, W/level Ind. |
|
$ 65.18 | |||||
| 10 | 154103702 | Screw, Latch Mtg, (2) |
|
$ 13.46 | |||||
| 11 | 154579201 | Pulley, Friction, Lh |
|
Immediately | $ 47.48 | ||||
| 12 | 5304525218 | Latch Assembly, Service Kit, W/connectors, And Heatshrink |
|
Immediately | $ 49.89 | ||||
| 20 | 807278504 | Door Assembly, W/insullation, White (Replaces: 807278501) |
|
$ 148.13 | |||||
| 21 | 154754701 | Screw, Truss Hd, 8-18 Type Ab |
|
$ 3.55 | |||||
| 40 | 5304521171 | Handle, Door, White |
|
$ 84.59 | |||||
| 41 | 154603401 | Plate, Handle Support, (2) |
|
Immediately | $ 16.30 | ||||
| 49 | 5304500204 | Gasket, Door, Bottom |
|
Immediately | $ 29.79 | ||||
| 53 | 154425001 | Nut, Keps, (2), Handle Mtg. |
|
$ 9.93 | |||||
| 11A | 154579202 | Pulley, Friction, Rh |
|
Immediately | $ 47.48 | ||||
| 1A | 154325201 | Linkage, Door Spring, (2) |
|
Immediately | $ 27.27 | ||||
| NI | 154686401 | Bearing, Hinge Pin |
|
$ 10.63 | |||||
| NI | 154647101 | Hinge Pin, Arm Assy |
|
$ 14.18 | |||||
| NI | 5304519911 | Sleeve, Brake, Rh, C-arm |
|
$ 36.87 | |||||
| NIA | 5304525214 | Shield, Dispenser Assy |
|
Immediately | $ 10.13 | ||||
| NIA | 5304529474 | Seal, Wrap, Inner Door, Super J |
|
Immediately | $ 7.85 | ||||
| NIA | 5304538695 | Insulation, Door (Replaces: 154253201) |
|
- |
