View Diagram in Separate Window
Print Part List

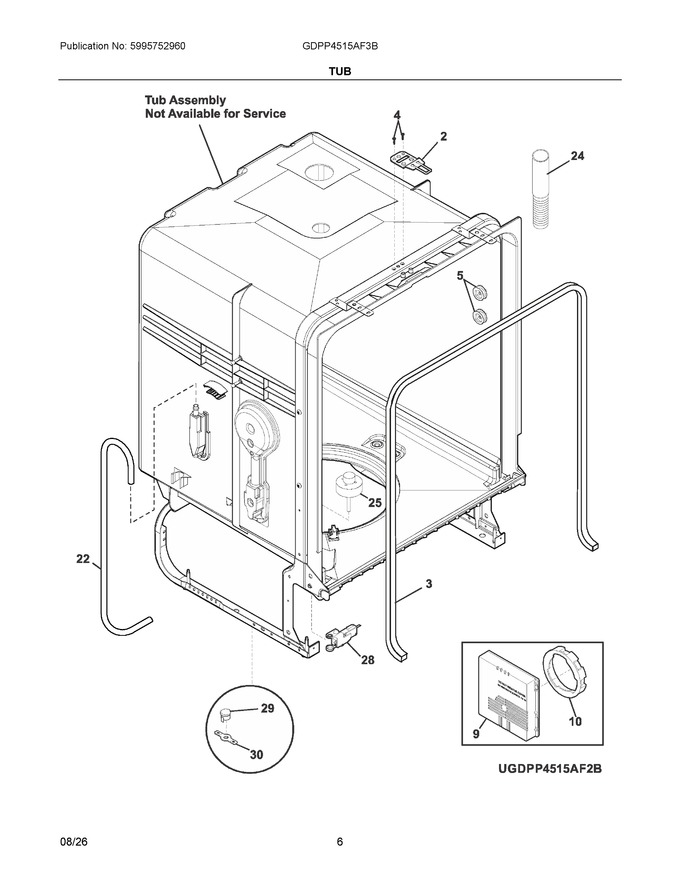

SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304537675 | Strike, Door Latch |
|
$ 6.89 | |||||
| 3 | 8581548276014 | Gasket, Tub (Replaces: 154827601) |
|
Immediately | $ 26.30 | ||||
| 4 | 808326801 | Screw, Hex Head, 8-18 X .400, (2) |
|
$ 2.84 | |||||
| 5 | 5304536497 | Roller Assembly, Tub, Midnight Ink, W/screw-washer |
|
Immediately | $ 3.03 | ||||
| 9 | 5304523304 | Vent Assembly, Blower |
|
Immediately | $ 154.71 | ||||
| 10 | 154562904 | Bezel, Vent, Midnight Ink |
|
$ 6.89 | |||||
| 22 | 5304523457 | Tubing, Inlet Water |
|
Immediately | $ 14.03 | ||||
| 24 | 807117001 | Hose, Drain |
|
Immediately | $ 36.14 | ||||
| 25 | 5304532207 | Float, Water Level, Midnight Ink |
|
Immediately | $ 6.89 | ||||
| 28 | 154773201 | Switch Assy, Float |
|
Immediately | $ 55.29 | ||||
| 29 | 5304525221 | Thermostat, Service Kit, High Limit, W/connectors, And Heatshrink |
|
Immediately | $ 31.17 | ||||
| 30 | 154241101 | Retainer, Thermostat |
|
$ 3.62 | |||||
| NI | 808326801 | Screw, Hex Hd, 8-18 X .4, W/washer (Replaces: 154825401) |
|
$ 2.84 | |||||
| NI | 5304517603 | Insulation, Tub Blanket |
|
Immediately | $ 85.30 | ||||
| NI | 134154100 | Screw, #10-32 X 3/8 (Replaces: 154200701) |
|
$ 13.46 | |||||
| NI | 154380601 | Clamp, Hose, 1.5" Open, Worm Gear, (5) |
|
$ 73.71 | |||||
| NIA | 154297701 | Screw, Retainer-thermo |
|
$ 13.46 | |||||
| NIA | 154691601 | Cover, Connector, Vent Assy |
|
$ 13.41 |
