SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Door


04 - Tub


05 - Motor & Pump


06 - Frame


07 - Racks


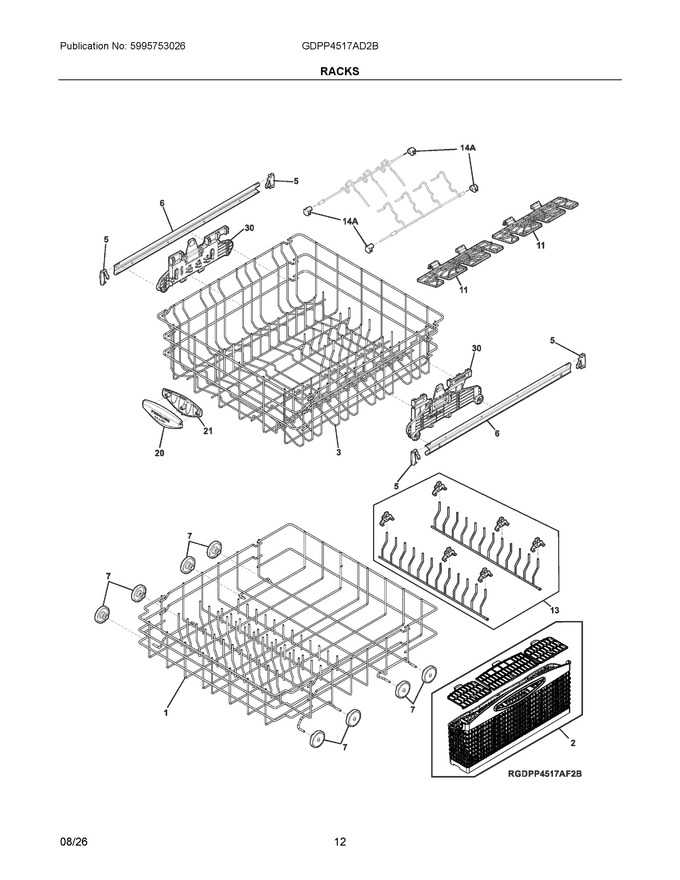

08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304532969		Rack Assembly, Metalic, Lower			Immediately	$ 159.24
2	5304535382		Basket Assembly, Silverware, Earl Gray, W/3 Lids   (Replaces: 5304532213)			Immediately	$ 25.43
3	5304532968		Rack Assembly, Metalic, Upper		Appelez-nous	-
5	5304532200		Cap, Rack Slide, Midnight Ink			Immediately	$ 4.43
6	5304532271		Slide, Rack, Upper				$ 50.42
7	5304532229		Wheel & Bushing Assy, Midnight Ink, Lower Rack			Immediately	$ 12.75
11	5304532945		Cup Shelf, Stemware, Midnight				$ 7.42
13	14005493802		Fold Down Fence W Clips, Lower			Immediately	$ 14.70
20	5304532977		Handle, Rack, Midnight, Front		Appelez-nous	-
21	5304532947		Handle, Rack, Midnight, Rear		Appelez-nous	-
30	5304532268		Rack Adjustment, Assembly, Earl Gray, Rh				$ 26.85
14A	5304532946		Bracket, Multifence, Midnight				$ 3.50
NI	140056808029		Basket Assembly, Silverware, Midnight Ink		Appelez-nous	-
NIA	5304532269		Rack Adjustment, Assembly, Earl Gray, Lh				$ 26.85

    View Diagram in Separate Window       Print Part List
