View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Tub

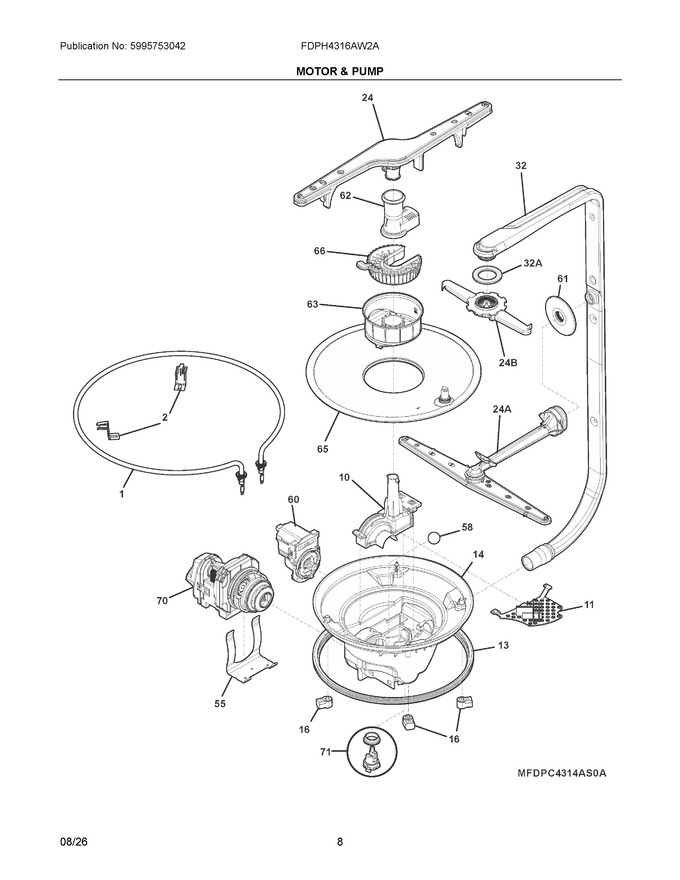

05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154825001 | Heater, Round |
|
Immediately | $ 91.19 | ||||
| 2 | 154465101 | Bracket, Heater, (2) |
|
Immediately | $ 11.34 | ||||
| 10 | 807145201 | Cover, Volute |
|
Immediately | $ 19.90 | ||||
| 11 | 807111601 | Plate, Pump Inlet |
|
Immediately | $ 17.72 | ||||
| 13 | 154246801 | Gasket, Sump |
|
$ 52.17 | |||||
| 14 | 154723801 | Sump Assembly |
|
Immediately | $ 60.96 | ||||
| 16 | 154246502 | Retainer, Sump |
|
Immediately | $ 40.40 | ||||
| 24 | 5304535549 | Spray Arm, Assembly, Grey, Lower |
|
Immediately | $ 17.50 | ||||
| 32 | 5304507087 | Tube, Delivery |
|
Immediately | $ 60.53 | ||||
| 55 | 5304534830 | Bracket, Pump Motor |
|
$ 5.54 | |||||
| 58 | 154246402 | Check Ball |
|
Immediately | $ 55.99 | ||||
| 60 | 5304533024 | Pump Assembly, Drain |
|
Immediately | $ 59.28 | ||||
| 61 | 5304532204 | Grommet, Delivery Tube |
|
Immediately | $ 8.58 | ||||
| 62 | 5304532235 | Support, Spray Arm, Midnight Ink, Lower |
|
Immediately | $ 7.33 | ||||
| 63 | 5304532205 | Base, Soil Director |
|
Immediately | $ 13.74 | ||||
| 65 | 140281806020 | Filter, Assembly, Black |
|
Immediately | $ 8.85 | ||||
| 66 | 5304532206 | Trap, Glass, Midnight Ink |
|
Immediately | $ 11.23 | ||||
| 70 | 5304519906 | Motor & Pump Assy, Leili, W/o-rings |
|
Immediately | $ 111.72 | ||||
| 71 | 154762601 | Sensor, Turbidity, Snap-in, W/seal |
|
Immediately | $ 77.97 | ||||
| 24A | 5304532202 | Manifold Assembly, Spray Arm, Middle, W/bellow |
|
Immediately | $ 30.37 | ||||
| 24B | 5304532203 | Spray Arm, Assembly, Upper, W/nut |
|
Immediately | $ 14.07 | ||||
| 32A | 154406401 | Gasket, Delivery Tube |
|
Immediately | $ 15.46 | ||||
| NI | 154783101 | Screw, Plt, 8-10 |
|
Immediately | $ 7.09 | ||||
| NI | 154611101 | Clamp, Spring, Red, (2) |
|
$ 12.05 | |||||
| NI | 5304538466 | Clamp, Hose |
|
$ 2.31 | |||||
| NI | 154241101 | Retainer, Thermostat |
|
$ 3.62 | |||||
| NI | 154380601 | Clamp, Hose, 1.5" Open, Worm Gear, (5) |
|
$ 73.71 | |||||
| NI | 808326801 | Screw, Hex Hd, 8-18 X .4, W/washer (Replaces: 154825401) |
|
$ 2.84 | |||||
| NIA | 154491101 | Screw, Delivery Tube |
|
$ 3.62 | |||||
| NIA | 154106202 | Nut, Heater, (2) |
|
Immediately | $ 18.32 | ||||
| NIA | 154779601 | Screw, Ph, 8-10, (2) |
|
$ 1.42 | |||||
| NIA | 154741501 | Screw, Drain Motor Mtg, (3) |
|
$ 13.46 | |||||
| NIA | 154754901 | Screw, Sump Mtg, 8-16, (4) |
|
Immediately | $ 4.26 | ||||
| NIA | 154297701 | Screw, Retainer-thermo |
|
$ 13.46 | |||||
| NIB | 807048001 | Flapper, Valve |
|
Immediately | $ 8.90 | ||||
| NIB | 154289801 | Shield, Heater Terminal |
|
$ 7.33 |
