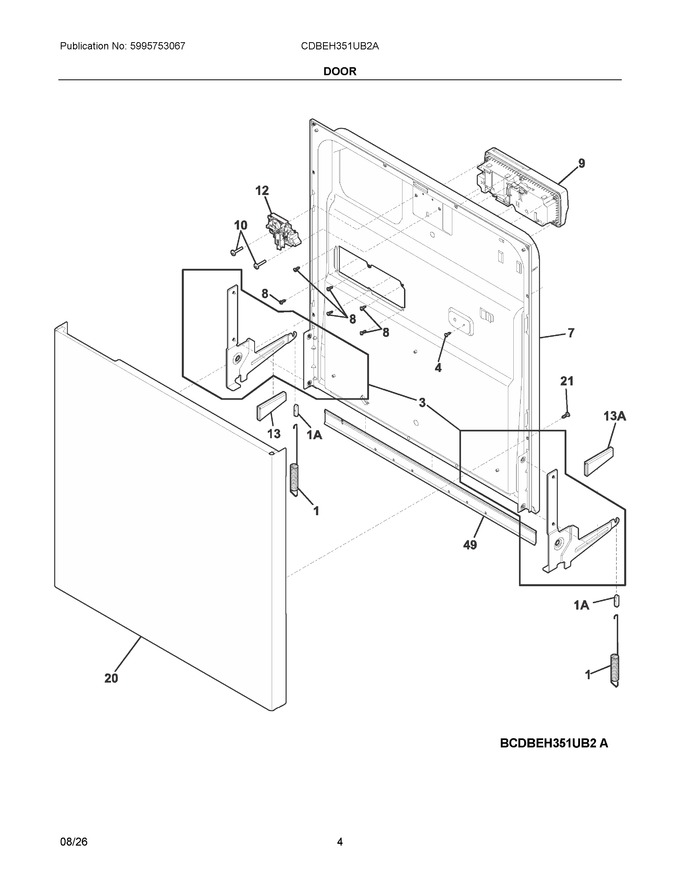

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154430501 | Spring, Door, (2) |
|
Immediately | $ 36.31 | ||||
| 3 | 5304513274 | Counterbalance Arm, Kit, Lh & Rh, W/screws-nuts |
|
Immediately | $ 66.56 | ||||
| 4 | 808326801 | Screw, Hex Hd, 8-18 X .4, W/washer (Replaces: 154825401) |
|
$ 2.84 | |||||
| 7 | 140119106023 | Liner Assembly, Door, W/wiper&reinfor |
|
$ 60.02 | |||||
| 8 | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 9.22 | |||||
| 9 | 5304532199 | Dispenser, Det/rinse Aid, W/level Ind. |
|
$ 65.18 | |||||
| 10 | 154103702 | Screw, Latch Mtg, (2) |
|
$ 13.46 | |||||
| 12 | 140259553018 | Latch Assembly, Door |
|
Immediately | $ 23.27 | ||||
| 13 | 5304519910 | Sleeve, Brake, Lh, C-arm |
|
$ 37.59 | |||||
| 20 | 5304517204 | Door, Outer, Black, W/barrier |
|
- | |||||
| 21 | 154754701 | Screw, Truss Hd, 8-18 Type Ab |
|
$ 3.55 | |||||
| 49 | 5304500204 | Gasket, Door, Bottom |
|
Immediately | $ 29.79 | ||||
| 13A | 5304519911 | Sleeve, Brake, Rh, C-arm |
|
$ 36.87 | |||||
| 1A | 154325201 | Linkage, Door Spring, (2) |
|
Immediately | $ 27.27 | ||||
| NI | 154686401 | Bearing, Hinge Pin |
|
$ 10.63 | |||||
| NI | 154647101 | Hinge Pin, Arm Assy |
|
$ 14.18 | |||||
| NI | 154241101 | Retainer, Thermostat |
|
$ 3.62 | |||||
| NI | 154783101 | Screw, Plt, 8-10 |
|
Immediately | $ 7.09 | ||||
| NIA | 5304525214 | Shield, Dispenser Assy |
|
Immediately | $ 10.13 |
