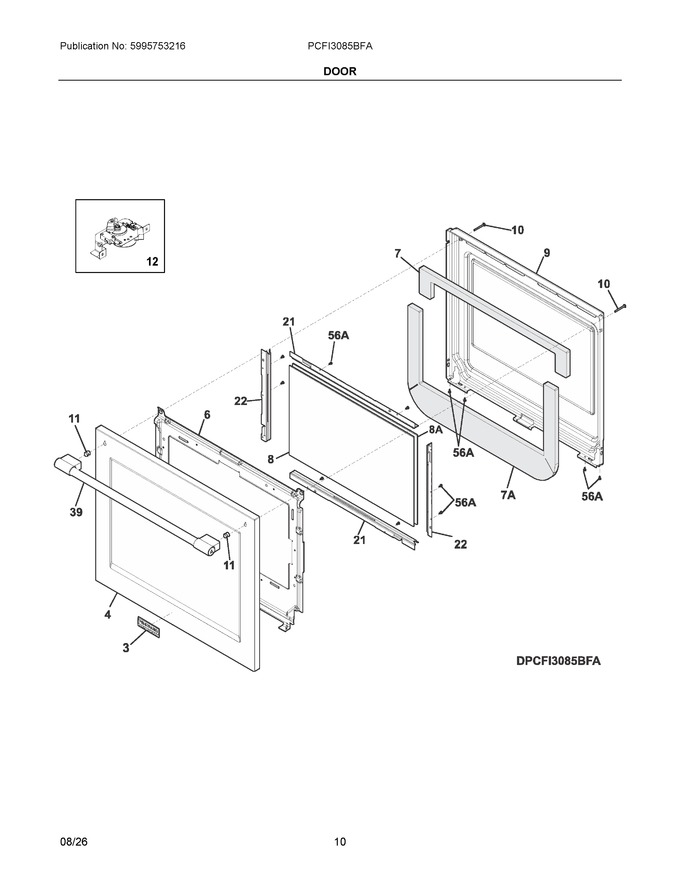

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	140300321019		Badge, Frigidaire Pro		Appelez-nous	-
4	140209390099		Door Assembly, Stainless		Appelez-nous	-
6	5304528106		Shield, Wool			Immediately	$ 98.04
7	140293846022		Insulation, Door (2)			Immediately	$ 7.15
8	5304526387		Glass, Door, Shr, Inner, 2 Side Coating			Immediately	$ 166.09
9	5304528160		Liner, Oven Door, Midnight Black			Immediately	$ 140.53
11	5304494420		Nut, Hour Glass, Handle Mtg.				$ 12.76
12	140284736018		Latch, Electronic, Door Lock		Appelez-nous	-
21	5304526285		Bracket, Glass Pack, Horizontal				$ 9.10
22	5304526284		Bracket, Glass Pack, Vertical			Immediately	$ 12.13
39	140306724026		Handle, Door, 30", Frig Pro		Appelez-nous	-
56A	5304526532		Screw, M4.2 X 9.5, Black				$ 3.03
7A	140299178040		Insulation, Door,, Bottom-pur		Appelez-nous	-
8A	140163079100		Glass, Door, Inner				$ 62.12
NI	316483102		Label, Anti-tip				$ 3.56
NI	316433305		Screw, Trus T20, 10-44 X 1.870, Black, Handle Mtg.				$ 2.28
NIA	5304414648		Screw, Handle Mtg.				$ 14.18
