SELECT A DIAGRAM

01 - Cover Sheet

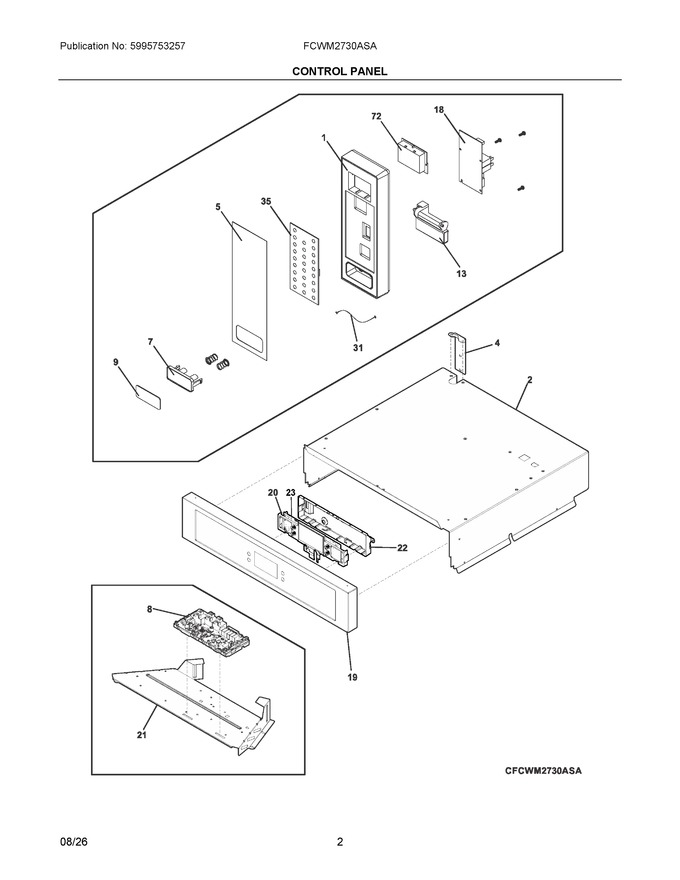

02 - Control Panel


03 - Upper Oven


04 - Lower Oven


05 - Doors


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304520027		Control Panel, Microwave, Black				$ 87.16
2	5304527959		Support, Plate		Appelez-nous	-
4	5304532393		Bracket, Conduit		Appelez-nous	-
5	5304520029		Membrane, Touch Pad				$ 123.47
7	5304520028		Button, Door Opening, Black		Appelez-nous	-
8	140171068087		Pc Board, Ovc				$ 127.45
9	5304520025		Trim, Button, Cover, Decorative		Appelez-nous	-
13	5304520026		Lever, Door Opening				$ 17.78
18	5304520031		Pc Board, Control				$ 241.46
19	140206690194		Control Panel, Assembly, Stainless		Appelez-nous	-
21	139028002		Bracket, Mounting				$ 38.37
22	5304538627		Cover, Control Ui		Appelez-nous	-
23	140199403027		Control Board, Hmi Hector				$ 49.37
31	5304520032		Connector		Appelez-nous	-
35	5304520030		Pc Board, Touch Pad, User Interface				$ 187.97
72	5304519326		Pc Board, Display				$ 184.68
20A	140225818149		User Interface, Ui		Appelez-nous	-
NI	316001017		Screw, Grounding, 10-24 X 1.835, Green				$ 3.03
NI	5304535368		Harness, Conduit Assy, Power Connect				$ 154.45
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304525394		Harness, Grounding, Control Panel		Appelez-nous	-
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NI	5304533876		Chassis, Control			Immediately	$ 17.91
NI	140177694035		Harness, Power Connect		Appelez-nous	-
NI	140200603110		Wiring Harness, Hmi Hector, Jumper		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
