SELECT A DIAGRAM

01 - Cover Sheet


02 - Cook Top

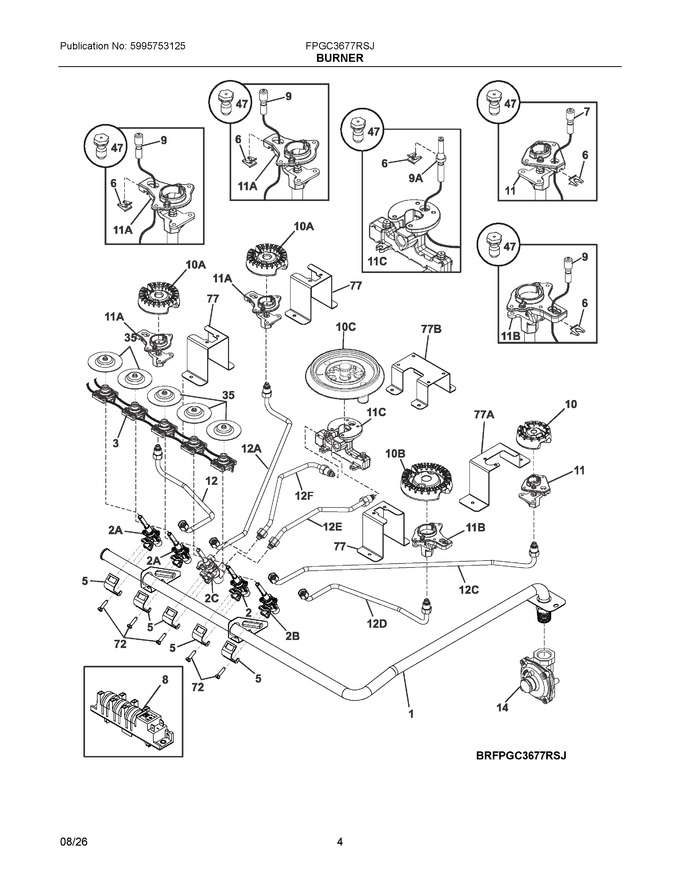

03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140052953043		Manifold, Pipe		Appelez-nous	-
2	5304505693		Valve, Saddle, 680 Btu, Orange Stem				$ 80.85
3	5304527828		Switch Assembly, Ignitor, W/harn			Immediately	$ 32.91
5	357733403		Bracket, Valve Fixing		Appelez-nous	-
6	5304538490		Spring Clip, Ignitor   (Replaces: 5304516455)				$ 4.08
7	5304516453		Ignitor, Top Burner, 380mm, W/wiring				$ 20.03
8	5304537114		Spark Module, 5 Outputs			Immediately	$ 47.88
9	5304516454		Ignitor, Top Burner, 520mm, W/wiring				$ 22.45
10	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
11	5304516449		Holder, Orifice/ignitor, 5k, W/nat Orifice				$ 43.99
12	5304520943		Tube, Burner, Lh Front		Appelez-nous	-
14	5304519943		Regulator, Pressure				$ 129.93
35	5304508440		Bushing, Insulating			Immediately	$ 11.38
47	5304508448		Lp Kit, Gas Conversion		Appelez-nous	-
72	5304508436		Screw, Saddle Valve, M4		Appelez-nous	-
77	5304498799		Bracket, Ignitor/orifice, Mounting				$ 18.43
10A	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10B	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
10C	5304519952		Burner Assembly, G5			Immediately	$ 94.80
11A	5304516450		Holder, Orifice/ignitor, 9.5k, W/nat Orifice			Immediately	$ 43.99
11B	5304516452		Holder, Orifice/ignitor, 14k, W/nat Orifice				$ 54.15
11C	5304522452		Holder Assembly, Ignitor/orifice, 18k Burner, W/nat Orifices				$ 163.05
12A	5304520942		Tube, Burner, Lh Rear		Appelez-nous	-
12C	5304520940		Tube, Burner, Rh Front		Appelez-nous	-
12D	5304532994		Tube, Burner, Rh Rear   (Replaces: 5304520941)		Appelez-nous	-
12E	140122023017		Tube, Dual Brn Second		Appelez-nous	-
12F	140122022019		Tube, Dual Brner Main		Appelez-nous	-
2A	5304505690		Valve, Saddle, 850 Btu, Green Stem			Immediately	$ 69.77
2B	5304505691		Valve, Saddle, 1125 Btu, Blue Stem			Immediately	$ 69.01
2C	5304508435		Valve, Saddle, 1500/2000 Btu, Yellow Stem, Dual Burner				$ 190.81
77A	5304523447		Bracket, Ignitor/orifice, 5k Bur				$ 12.05
77B	5304500254		Bracket, Twin Burner		Appelez-nous	-
9A	5304522453		Ignitor, Top Burner, G5 18/20k, W/wiring				$ 29.37
NI	305338602		Screw		Appelez-nous	-
NI	139029300		Burner, Simmer, G5				$ 19.89
NI	305309701		Screw, Phil, 4.2 X 6.5, (20)				$ 5.67
NI	A02985602		Burner Base, Elux-pur		Appelez-nous	-
NI	A21779501		Gasket, Valve Stem		Appelez-nous	-
NIA	5304519944		Cap, Regulator, Red		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
