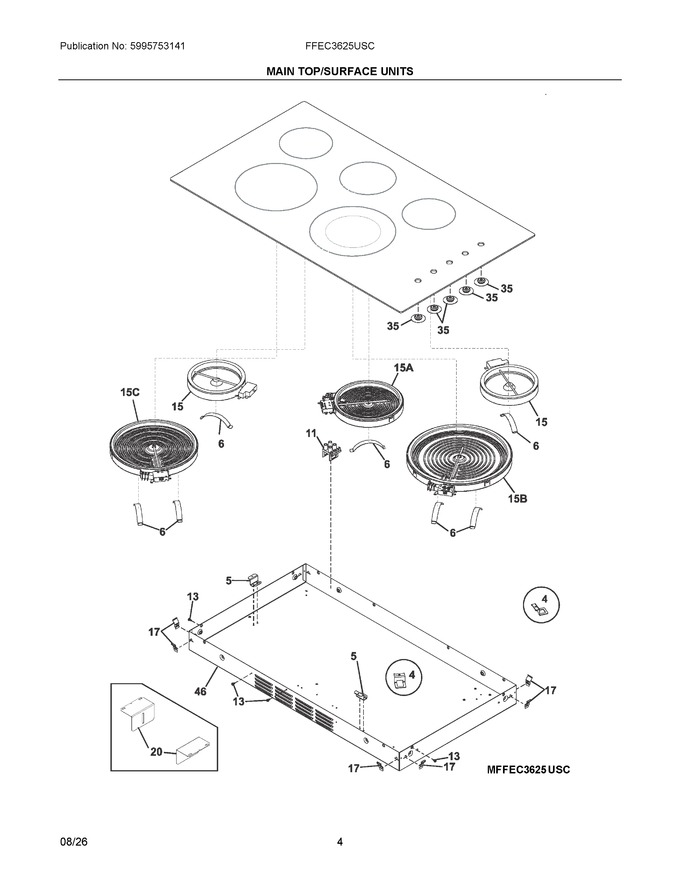

03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	387683300		Bracket, Surface Element			Immediately	$ 13.42
5	5304518258		Bracket, Support, Z Style		Appelez-nous	-
6	387372900		Spring, Surface Element				$ 15.17
11	140282021033		Indicator Lamp		Appelez-nous	-
13	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.36
15	140283001026		Element, Radiant, 140mm, 1200w			Immediately	$ 73.17
17	387174602		Bracket, Spring, Cooktop Mtg.				$ 5.67
20	5304538915		Bracket, Retainer, Maintop			Immediately	$ 5.41
35	5304515130		Bushing, Knob, Sealing			Immediately	$ 91.15
46	5304534173		Box, Burner, Outer, 36			Immediately	$ 137.21
15A	305440414		Element, Warm Zone, 6", 100w				$ 196.52
15B	8583890874024		Element, Surface, 6/9", Dual, 1600		Appelez-nous	-
15C	8583054404253		Element, Surface, 9", 2500w		Appelez-nous	-
NI	305376101		Screw, Bracket, Surface Element		Appelez-nous	-
NI	8587320115205		Screw, 8-18x5		Appelez-nous	-
NI	202855101		Holder, Cable				$ 1.42
NI	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NI	5304518930		Harness, Wiring, Main		Appelez-nous	-
NI	305338602		Screw		Appelez-nous	-
NI	5304537042		Cable And Wires Asmy		Appelez-nous	-
