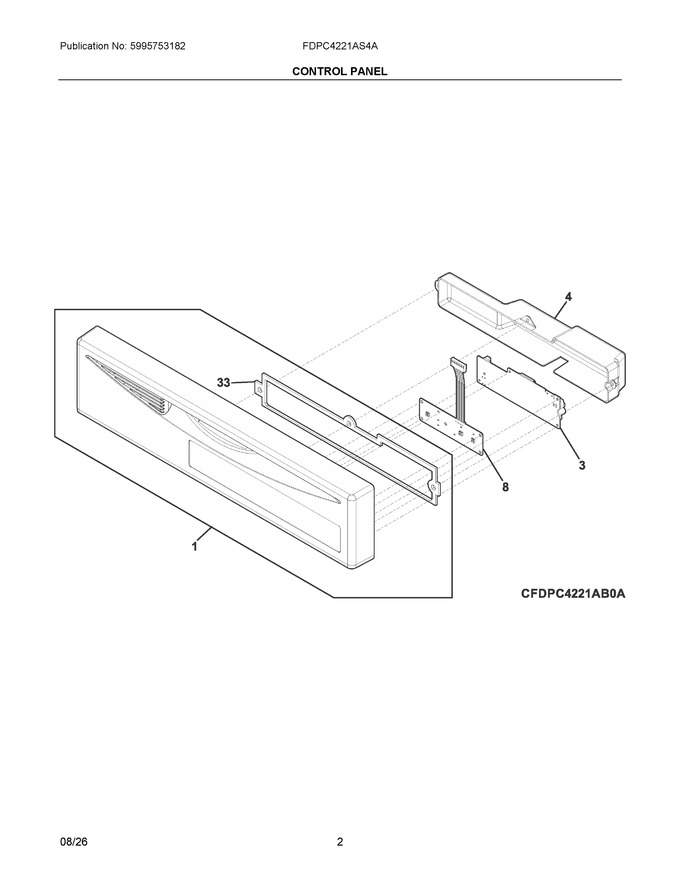

02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 140202306050 | Console Assembly, W/overlay |
|
- | |||||
| 3 | 140217719099 | Pc Board, Main Control (Replaces: 5304535629) |
|
Immediately | $ 81.44 | ||||
| 4 | 5304525212 | Cover, Electronics |
|
- | |||||
| 8 | 5304536751 | Pcba Tactile Swt Twr White Led |
|
$ 20.68 | |||||
| 33 | 154553501 | Gasket, Cover |
|
$ 42.34 | |||||
| NI | 5304536754 | Harness 4221 Lvl Catamnt Stcko |
|
- | |||||
| NI | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 9.22 |
